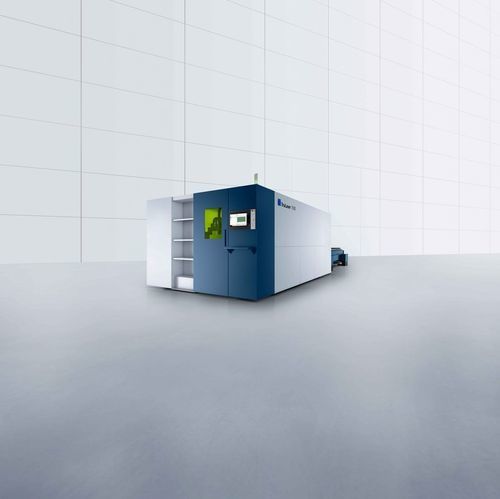

2D laser cutting machine TruLaser 10 series

for metalsheet metalCNC

Overview
The TruLaser Series 1000 uses a solid-state fiber laser and an operator-oriented HMI to provide a compact 2D laser cutting solution for low to medium utilization. Machines offer configurable laser power options, automation interfaces and a set of process packages for different materials and part geometries.

Key benefits

• Cost-effective entry and expansion option for workshops with low to medium throughput
• Intuitive Touchpoint control and integrated cutting data to reduce setup time
• Consistent cutting results across supported materials and thickness ranges
• Enclosed protective housing and beam guard for operator safety
• Automation-ready interfaces and options for part handling and sorting

Applications

• Wide sheet thickness range (example: TruLaser 1030 fiber typically covers 1–25 mm)
• Productive fusion cutting of thin stainless steel and mild steel
• Cutting of aluminium, brass, copper and coated stainless steel with appropriate configuration
• Advanced processes and options for special tasks: BrightLine fiber, CoolLine, Highspeed, Highspeed Eco, EdgeLine Bevel, etc.

Features and functions

• Touchpoint HMI (tablet-like) for fast operator onboarding
• Integrated cutting data for materials and thicknesses (pretested TRUMPF parameters)
• Single-cutting-head strategy with automatic focus and focal diameter adjustment
• Nanojoints and microjoints for secure part fixing and simplified removal
• Part Station and Part Separator for efficient sorting and separation
• Fiber Care: spare parts support for TruFiber lasers in connection with service agreements
• PierceLine: monitored and controlled piercing to protect machine and reduce pierce time
• BrightLine fiber for improved edge quality across thicknesses
• CoolLine for targeted cooling during cutting of thick mild steel
• Highspeed and Highspeed Eco processes for increased throughput and reduced gas consumption
• Automatic nozzle changer and automated nozzle strategies for continuous operation
• Collision protection, Smart Collision Prevention and DetectLine for process reliability
• AdjustLine for process adaptation to material quality variations
• Sorting Guide, Drop&Cut, MobileControl app and Cutting Guide for camera and software assistance
• Extensive software ecosystem: TruTops Boost and Smart View for programming and monitoring

Technical data (selected, overview table highlights)
Models: TruLaser 1030 fiber / TruLaser 1040 fiber / TruLaser 1060 fiber
Dimensions (L × W × H): 9333 mm × 5990 mm × 2200 mm (1030) · 11150 mm × 6650 mm × 2200 mm (1040) · 15500 mm × 7150 mm × 2200 mm (1060)
Weight of basic machine: 9400 kg (1030) · 12000 kg (1040) · 16500 kg (1060)
Maximum speed (simultaneous): 140 m/min for all models
Working range (X × Y): 3000 mm × 1500 mm (1030) · 4000 mm × 2000 mm (1040) · 6000 mm × 2500 mm (1060)
Maximum workpiece weight without heavy-duty pallet changer: 900 kg (1030) · 2000 kg (1040) · 2900 kg (1060)
Maximum workpiece weight with heavy-duty pallet changer: 1800 kg (1030) · 3300 kg (1040) · 4900 kg (1060)
Laser options (examples): TruFiber 4000 / 6000 / 9000 / 12000 (see product page for available power levels)

Note
Many additional options and process packages are available (BrightLine fiber, CoolLine, Highspeed, Nanojoints, EdgeLine Bevel, PierceLine, etc.). Machine capabilities and maximum sheet thicknesses depend on selected laser power and configuration. Verify final specifications on the product datasheet.
