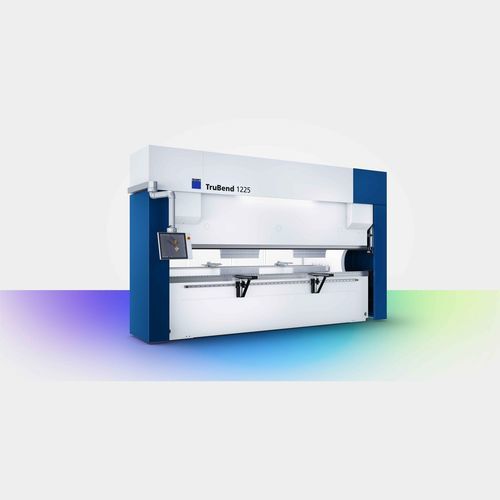

Electric bending machine TruBend 1000

profileverticalCNC

Overview
The TruBend Series 1000 is an entry-level press brake range designed for straightforward, flexible bending operations. It offers a cost-effective solution for producing consistent part quality with simple operation, suitable for handling peak loads and additional orders.

Key features

• Direct and intuitive operation: numerical and graphic programming via TRUMPF controls for fast setup.
• Exact bending: 4-axis backgauge for accurate positioning of complex components.
• Tool clamping variants: QuickClamp (Classic) and hydraulic TRUMPF clamp (Comfort) for fast tool changes.
• Remote support: TRUMPF remote service for worldwide assistance and diagnostics.

Applications

• Bending thin sheet parts with precise angles.
• Processing long profiles with high dimensional accuracy.
• Flexible handling of varying sheet thicknesses across models.

Equipment / Models

• Classic Model: standard configuration for universal bending tasks with QuickClamp and 4-axis backgauge.
• Comfort Model: extended configuration with hydraulic tool clamp, CNC-controlled crowning and options for lightweight tools and Safety-Click.

Technical data (selection from product table)
Category | TruBend 1060 Comfort | TruBend 1100 Classic | TruBend 1100 Comfort | TruBend 1150 Classic | TruBend 1150 Comfort | TruBend 1225 Classic | TruBend 1225 Comfort | TruBend 1320 Comfort
Press force | 600 kN | 1000 kN | 1000 kN | 1500 kN | 1500 kN | 2250 kN | 2250 kN | 3200 kN
Bending length | 2050 mm | 3100 mm | 3100 mm | 3100 mm | 3100 mm | 4100 mm | 4100 mm | 4100 mm
Width between columns | 1600 mm | 2700 mm | 2700 mm | 2700 mm | 2700 mm | 3700 mm | 3700 mm | 3700 mm
Usable open height | 400 mm | 380 mm | 400 mm | 380 mm | 400 mm | 380 mm | 400 mm | 505 mm
Throat depth | 350 mm | 410 mm | 410 mm | 410 mm | 410 mm | 410 mm | 410 mm | 410 mm
Dimensions (L×W×H) examples | 2760×1910×2500 mm | 3790×1910×2545 mm | 3790×1910×2545 mm | 3790×2035×2545 mm | 3790×2035×2545 mm | 4780×2080×2900 mm | 4780×2080×2900 mm | 4800×2320×3410 mm
Weight examples | 5900 kg | 8350 kg | 8350 kg | 9600 kg | 9600 kg | 15000 kg | 15000 kg | 20800 kg

Additional information
Comfort model supports lightweight tooling (up to 30% lighter) with Safety-Click, LASERdur ZN coated tools for zinc-plated sheet, and a wide range of over 150 tool types. Software and connectivity: TecZone Bend compatibility, OPC UA interfaces and integration options for monitoring and factory systems.

Characteristics / technical specifications

• Product family: TruBend Series 1000 (models: 1060, 1100, 1150, 1225, 1320 in Classic and Comfort).
• Press force range: 600 kN to 3200 kN depending on model.
• Bending length range: 2050 mm to 4100 mm depending on model.
• Backgauge: 4-axis backgauge for precise positioning.
• Tool clamp: QuickClamp (Classic) or hydraulic TRUMPF clamp (Comfort).
• Comfort features: hydraulic clamp, CNC-controlled crowning and extended configuration options.
• Software: TecZone Bend; connectivity via OPC UA for integration.
