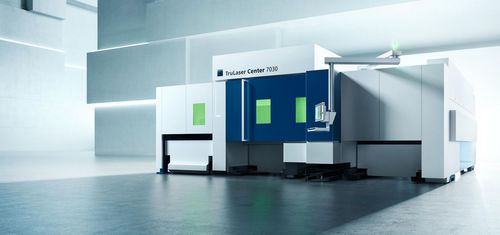

2D laser cutting machine TruLaser Center 7030

sheet metalCNCcompact

Overview
The TruLaser Center 7030 is a compact, fully automated 2D laser cutting system that integrates programming, cutting, part removal, sorting and depositing in a single cell. It is designed for continuous, high-throughput production with reliable handling of small and delicate parts.

Key benefits and functions

• Complete automated workflow: programming suggestions, laser cutting, part removal, sorting and depositing.
• Vision Equipment: cameras and lighting for process transparency and monitoring.
• SmartGate: moving part support synchronized with the cutting head to prevent tilting and unwanted welding; ejector cylinder finds optimal push‑out points.
• SmartLift: adjustable pins lift parts from below to stabilise delicate geometries during removal.
• SortMaster Speed: high-speed removal and stacking onto up to eight pallets/containers with minimal interruption to cutting.
• SortMaster Box Linear: parallel sorting of small parts into up to eight containers.
• LoadMaster Center / LoadMaster options: automated sheet loading and robust peeling technology for reliable sheet separation.
• Automatic nozzle changer: program-controlled nozzle selection with cabinet storage for parallel setup.
• Hybrid machine concept: dynamic additional axis on the cutting head to exploit high feed rates for corners and complex contours.
• TruTops Boost: automatic generation of cutting, removal and sorting proposals that consider physical conditions to avoid tipping and optimise flow.
• Storage connection options: front or side connection to stores (e.g. TruStore or third‑party large stores) for material supply and finished part storage.

Applications and materials
The machine handles common sheet-metal applications and processes mild steel, stainless steel, aluminium, copper and brass. It is especially efficient on thin sheets and enables reliable processing and removal of very small or delicate parts.

Automation & software

• Integration of automated hardware modules (SmartGate, SmartLift, SortMaster Speed/Box Linear, LoadMaster) with TruTops Boost for workflow support.
• Industry 4.0 readiness with connectivity and OPC UA interfaces; Smart View for machine monitoring and analysis.
• Options for integration with warehouse systems and production planning tools.

Use cases / Highlights

• Fully automated production from program to sorted part for high‑throughput laser cutting.
• Reliable removal and stacking of large and extremely delicate parts.
• Intelligent part support and ejection reduce scrap and handling interruptions.
• Adaptable to a wide range of geometries and sheet thicknesses within machine limits.

Technical characteristics / specifications

• Model name: TruLaser Center 7030
• Brand: TRUMPF
• Installation area — Length: 10135 mm
• Installation area — Width (cart extended): 10720 mm
• Installation area — Width (cart retracted): 6420 mm
• Installation area — Height: 3050 mm
• Weight with all units: 38860 kg
• Nominal working range — X axis: 3000 mm
• Nominal working range — Y axis: 1500 mm
• Nominal working range — Z axis: 120 mm
• Laser options: TruFiber 6001 (max 6000 W), TruFiber 12001 (max 12000 W)
• Maximum sheet thickness (examples): mild steel / stainless steel up to 12.7 mm; aluminium / brass / copper up to 6 mm
• SmartGate unloading — Max part size: 160 mm x 160 mm; Min part size: 30 mm x 30 mm
• SortMaster Speed unloading — Max part size: 2000 mm x 1500 mm; Min part size: 90 mm x 60 mm
• Standard automation modules: SmartGate, SmartLift, SortMaster Speed, SortMaster Box Linear, LoadMaster Center
• Software / integration: TruTops Boost; OPC UA interfaces; Smart View for monitoring
