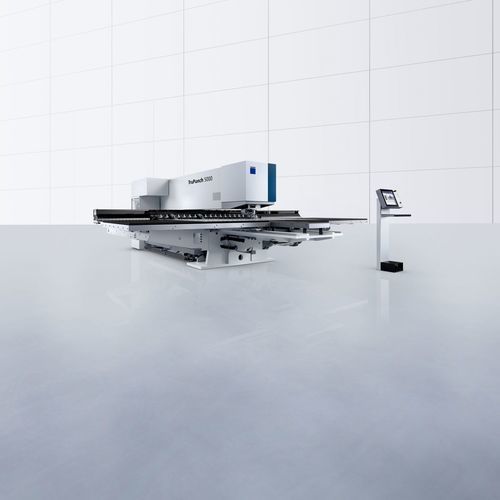

CNC punching machine TruPunch 5000

hydraulicfor metalpunching

Overview
The TruPunch 5000 is a high-performance industrial punching machine for series production. It combines high stroke rates, process reliability and modular automation options. Backlash-free drives and a high-speed C axis enable fast tapping and efficient processing of complex contours. The hydraulic drive allows punching up to 1,600 strokes/min and very high marking speeds; intelligent automation components and smart functions increase throughput and process stability.

Key features

• High stroke rates: punching up to 1,600 strokes/min (variant dependent) and marking up to 2,800–3,000 strokes/min.
• Active (descending) die for scratch-free punching and forming.
• Extensive automation options: SheetMaster, SortMaster Box / SortMaster Box Linear, DisposeMaster, ToolMaster Linear.
• Fast tool change with ToolMaster Linear (large magazine capacity; configuration support up to ~90 tools).
• Gentle material handling with retractable clamps and ball or brush tables for minimal scratching.
• Process reliability features: Smart Punch Monitoring, sheet size recognition, integrated flattening, Smart Load and Smart Unload.

Technical data (extract)
Formats: large / medium. Width: 7610 mm / 6540 mm. Depth: 8171 mm / 7395 mm. Height: 2072 mm / 2072 mm. Punching (E = 1 mm): 1350 1/min (large) / 1600 1/min (medium). Marking: up to 3000 1/min (table values; overview references up to 2,800–3,000 1/min). Punching range X / Y: 3050 mm / 1550 mm (large) ; 2500 mm / 1250 mm (medium). Max sheet thickness: 8 mm. Max workpiece weight: 280 kg (large) / 200 kg (medium). Max punching force: 220 kN. MultiTool change time: 0.3 s. Tools/clamps: 21 / 4 (large) ; 18 / 3 (medium). Part removal sizes: flap 500 x 500 mm; fixed chute 80 x 50 mm. Average power consumption: 0.5 kW (standby) ; 9.5 kW (production).

Applications

• High-volume punching, forming and marking of complex parts.
• Automated production lines with integrated loading, unloading and sorting.
• Parts requiring scratch-free surfaces or skeleton-free processing.

Specifications

• Model: TruPunch 5000
• Manufacturer: TRUMPF
• Category: Punching machines
• Punching speed: up to 1,600 1/min (variant dependent)
• Marking speed: up to 2,800–3,000 1/min
• Formats: large and medium (see technical data)
• Max sheet thickness: 8 mm
• Max punching force: 220 kN
• Tool automation: ToolMaster Linear (fast tool change; large magazine capacity)
• MultiTool tool change: 0.3 s
• Automation options: SheetMaster, SortMaster Box, SortMaster Box Linear, DisposeMaster, ToolMaster Linear
• Average power consumption (production): 9.5 kW; standby with auto-shutdown: 0.5 kW
