2D laser cutting machine TruLaser Cell 5030

3D laserfor metalfor aluminum profiles

Overview

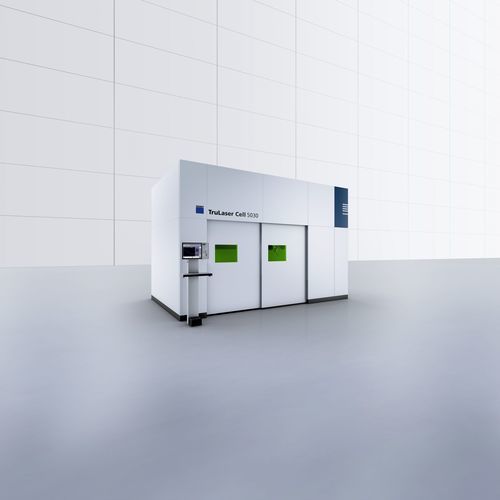

The entry-level TruLaser Cell 5030 is a flexible machine for 2D and 3D laser cutting and laser welding. Designed for small to medium lot sizes and frequent part changes, it combines a low machine-hour rate with options for solid-state TruDisk and TruFiber lasers and proven TruLaser Cell functions.

Main benefits

• Low operating cost: reduced investment and economical machine-hour rate for small/medium production runs.
• Process flexibility: flying optics and 2-in-1 LLK enable both cutting and welding with a single laser light cable (optics change required).
• Fast and reliable handling: magnetic coupling for processing optics and quick sliding front doors reduce downtime after collisions and speed up loading.
• Operator-friendly: Teachbox and touchscreen plus TruTops Cell Shopfloor for quick program adjustments at the machine.

Lasers and system
The machine is compatible with TRUMPF TruDisk solid-state lasers and TruFiber lasers. TruDisk delivers excellent beam quality and efficient cutting performance; the control system adapts automatically when switching optics between cutting and welding modes.

Machine reliability and process aids
Magnetic coupling minimizes mechanical damage in collisions to allow rapid recovery without external service. X-Blast technology increases nozzle-to-sheet distance for more stable 3D processing and improved edge/weld quality.

Applications

• 2D and 3D laser cutting and laser welding for small to medium lot sizes.
• Automotive components (e.g., tailgates, seat components), trimming and cutting of deep-drawn parts.
• Laser welding of three-dimensional parts (e.g., fan wheels) to reduce rework and material usage.

Technical data (selected)
Axis travel: X = 3000 mm; Y = 1500 mm; Z = 700 mm; B = ±135°; C = n × 360°
Max. workpiece size (usable): X = 2540 mm; Y = 1040 mm; Z = 470 mm
Max. axis speeds: X/Y/Z = 60 m/min (linear); simultaneous = 104 m/min; B/C = 60 1/min
Max. axis accelerations: X/Y/Z = 8 m/s²; simultaneous = 13.8 m/s²; B = 200 rad/s²; C = 100 rad/s²
Positioning accuracy: linear axes = 0.08 mm; B axis = 0.015°
Laser power: 3000 W – 4000 W; available lasers: TruDisk, TruFiber

Technical specifications

• Model: TruLaser Cell 5030
• Primary applications: 2D/3D laser cutting, laser welding
• Compatible lasers: TruDisk (solid-state), TruFiber (fiber)
• Laser power range: 3000 W – 4000 W
• Travel ranges: X = 3000 mm; Y = 1500 mm; Z = 700 mm; B = ±135°; C = continuous rotation (n × 360°)
• Max. usable workpiece dimensions (X × Y × Z): 2540 × 1040 × 470 mm
• Max. linear speeds (X/Y/Z): 60 m/min; simultaneous: 104 m/min
• Max. linear accelerations (X/Y/Z): 8 m/s²; simultaneous: 13.8 m/s²; B: 200 rad/s²; C: 100 rad/s²
• Positioning accuracy: 0.08 mm (linear), 0.015° (B)
• Notable functions: magnetic coupling for optics, X-Blast, flying optics, Teachbox and touchscreen, TruTops Cell Shopfloor integration, 2-in-1 LLK for cutting and welding
