Overview

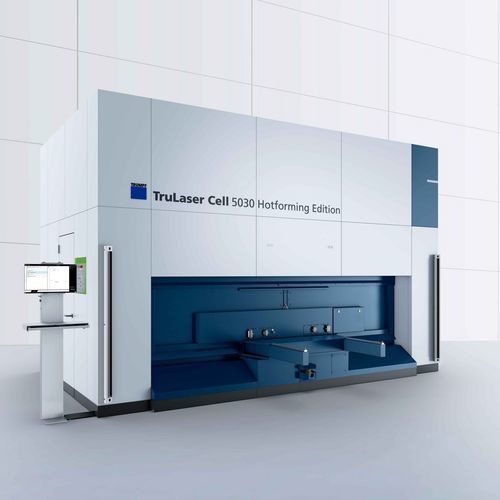

The TruLaser Cell 5030 Hotforming Edition is a mid-range 3D laser cutting system optimized for cutting hot-formed components. It combines many functions of higher-end models to offer a cost-effective entry into automated 3D laser processing while retaining industrial robustness and precise motion control.

Key features

• 5-axis 3D cutting: Full 3D positioning for complex geometries and flexible NC programming.
• Laser source: TruFiber options from 3000 W to 4000 W for demanding cutting tasks.
• Dynamic performance: Dynamic Level 3 delivers strong basic dynamics for the machine segment.
• Reduced non-productive times: Rotary table design and optimized approach/departure motions minimize idle times.
• Process options: X-Blast Nozzle, FastLine Cell Basic, ObserveLine (Comfort & Professional) to stabilize and speed up production.

Compact footprint
The machine features a compact, ergonomic layout: the rotary table is accessible from front and sides, enabling flexible workshop integration and efficient material handling.

X-Blast Nozzle Technology
X-Blast Nozzle provides a larger effective bandwidth than standard nozzles, increasing working distance, reducing nozzle collisions and improving process stability and component quality.

Applications

• High-volume cutting of hot-formed structural parts (e.g. frame panels, automotive B‑pillars).
• Flexible manufacturing of complex 3D components where NC programming and short setup times are required.

Software and automation
TruTops Cell supports 3D CAD import, correction, automatic cut proposals and device suggestions. Integration options and digital interfaces facilitate shopfloor programming, monitoring and connection to factory systems.

Technical specifications

• Maximum number of axes: 5
• Axis travel range: X = 3300 mm; Y = 1500 mm; Z = 600 mm
• B axis travel range: ± 135 °
• C axis travel range: n × 360 °
• Maximum workpiece size (X × Y × Z): 2840 mm × 1040 mm × 370 mm
• Maximum axis speed (axially parallel): X = 60 m/min; Y = 60 m/min; Z = 60 m/min
• Maximum simultaneous axis speed: 104 m/min
• Maximum axis speed of B axis: 60 1/min; C axis: 60 1/min
• Maximum axis accelerations (axially parallel): X = 9.5 m/s²; Y = 9.5 m/s²; Z = 9.5 m/s²
• Maximum axis acceleration, simultaneous: 16.5 m/s²
• Maximum axis acceleration of B axis: 200 rad/s²; of C axis: 100 rad/s²
• Positioning accuracy of linear axes (X, Y, Z): 0.08 mm
• Positioning accuracy of rotary axis (B): 0.015 °
• Maximum laser power: 3000 W - 4000 W
• Available lasers: TruFiber
• Rotary table automation: Maximum loading per side 260 kg; Work stations: 2
• Typical total non-productive time: 4.5 s; Typical rotation time: 2.4 s
• Diameter of rotary plate: 4000 mm; Working height: 700 mm
