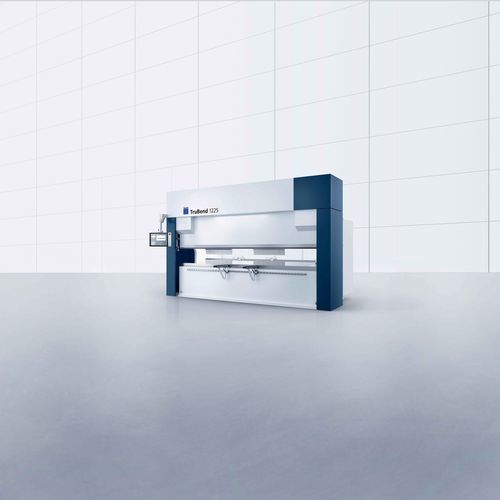

Electric bending machine TruBend 1000 Basic Edition

profileverticalCNC

Overview
The TruBend Series 1000 Basic Edition provides a cost-effective entry into TRUMPF bending technology. It offers straightforward control, consistent precision and standard safety functions, suitable for a variety of workshop bending tasks and long-profile processing.

Key benefits

• Intuitive control: RA (Right Angle) control enables numerical and graphical programming for faster setup and programming.
• Reduced setup time: Automatic tool clamping for quick tool changes.
• Accurate positioning: 4-axis backgauge delivers repeatable sheet positioning for complex parts.
• Integrated safety and service: BendGuard Basic for safeguarding and TRUMPF Remote Service for remote diagnostics and availability support.

Predefined variants
The TruBend Series 1000 Basic Edition is offered in three predefined equipment variants: Core Model, Classic Model and Comfort Model.

Main equipment and functions

• Automatic tool clamping for fast and safe tool changes.
• 4-axis backgauge to ensure correct sheet positioning and consistent flange lengths.
• Mechanical crowning (wedge) to compensate deflection and maintain angular accuracy across the bending length.
• BendGuard Basic combining press-beam motion with protective measures.
• C-frame structure and computer-aided component calculation to limit deformation and improve part accuracy.
• Standard package of upper and lower bending tools included per variant; optional lightweight tools and LASERdur ZN coating for galvanized sheets available.

Applications
Suitable for a wide range of bending tasks from simple to multi-stage and complex parts. Capable of handling different sheet thicknesses and long profiles thanks to its press force capacity.

Multimedia
Product presentation and production-line videos are available for the TruBend 1000 Basic Edition.

Technical specifications

• Example model referenced: TruBend 1225
• Press force: 2250 kN
• Bending length: 4100 mm
• Width between columns: 3700 mm
• Throat depth: 410 mm
• User interface: Touchscreen
• Maximum Y-axis speed (operation): 10 mm/s
• Example dimensions (L × W × H): 4780 mm × 2080 mm × 2900 mm
• Example weight: 15000 kg
• Available variants: Core Model, Classic Model, Comfort Model
• Included: package of upper and lower tools (variant-dependent)
