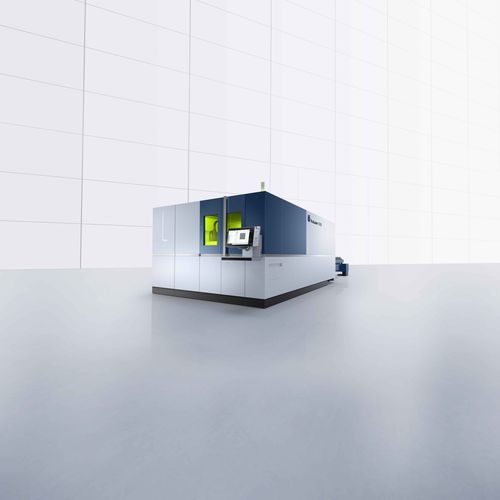

2D laser cutting machine TruLaser 50 series

for metalsheet metalCNC

OverviewThe TruLaser 5030 fiber, TruLaser 5040 fiber and TruLaser 5060 fiber are 2D fiber laser cutting machines combining dynamic drives, advanced cutting processes and modular automation. They accept TruFiber solid-state lasers up to 24 kW to deliver high feed ratesand reduced operator involvement.Key benefitsMinimal part costs – high machine dynamics and powerful drives for efficient machining of complex contours.Maximum laser power – up to 24 kW (TruFiber 24001) for significantly higher cutting speeds and stable process control via Active Speed Control.Consistent part quality – BrightLine fiber optics and optimized nozzle design for superior edge quality and reliable part removal.Highspeed / Highspeed Eco – process and nozzle options that increase throughput and reduce nitrogen consumption.Efficient power transmission – machine and process integration ensure effective application of laser power to the sheet for high productivity.Smart nozzle handling – automated nozzle changer and Smart Nozzle Automation for sustained nozzle and lens condition in automatic operation.Intuitive operation – Touchpoint HMI for rapid and user-friendly controls.Large-format capability – supports sheet sizes up to 6 × 2 m for oversized parts.Fine contours in thick steel – CoolLine function enables intricate cutting in thick mild steel.Technical data (selected)Models: TruLaser 5030 fiber / TruLaser 5040 fiber / TruLaser 5060 fiberDimensions (L×W×H): example 5030 — 9229 × 6145 × 2200 mm; 5040 — 11200 × 6373 × 2200 mmWeight (basic machine): 5030 — 11 700 kg; 5040 — 14 300 kgSimultaneous max speed: up to 280 m/minWorking range (X×Y): 5030 — 3000 × 1500 mm; 5040 — 4000 × 2000 mm; 5060 variants availableMax workpiece weight (single pallet): up to 3 300 kg with heavy-duty pallet changer (model dependent)Laser-specific data (examples by TruFiber type)TruFiber 6001 — max 6 000 W; mild steel up to 25 mm (32 mm with thick-sheet package); stainless steel up to 25 mm (35 mm pack); aluminium up to 25 mm; copper/brass up to 10 mm.TruFiber 9001 — max 9 000 W; mild steel up to 30 mm; stainless steel up to 40 mm; aluminium up to 30 mm; copper up to 16 mm; brass up to 12.7 mm.TruFiber 12001 — max 12 000 W; mild steel up to 30 mm (50 mm with pack); stainless up to 40 mm (50 mm pack); aluminium up to 30 mm (40 mm pack); copper up to 16 mm; brass up to 12.7 mm.TruFiber 24001 — max 24 000 W; mild steel up to 40 mm (60 mm with pack); stainless up to 40 mm (60 mm pack); aluminium up to 40 mm; copper up to 16 mm; brass up to 12.7 mm.Consumption values (production average)TruFiber 6001 ≈ 11 kW; TruFiber 9001 ≈ 14.5 kW; TruFiber 12001 ≈ 16 kW; TruFiber 24001 ≈ 27 kW.Features & optionsBrightLine fiber, CoolLine, Highspeed / Highspeed EcoActive Speed Control, Smart Rerun, Nanojoints / MicrojointsSmart Nozzle Automation, EdgeLine Bevel, PierceLinePerformance packages, integrated gas mixer and nozzle changer optionsAutomation & integrationModular automation: LoadMaster, LiftMaster, SortMaster, Part StationStorage integration (TruStore), OPC UA interfaces and TRUMPF software ecosystem (TruTops Boost, Smart View)
