CNC punching machine TruPunch 1000

electricfor metalpunching

Overview

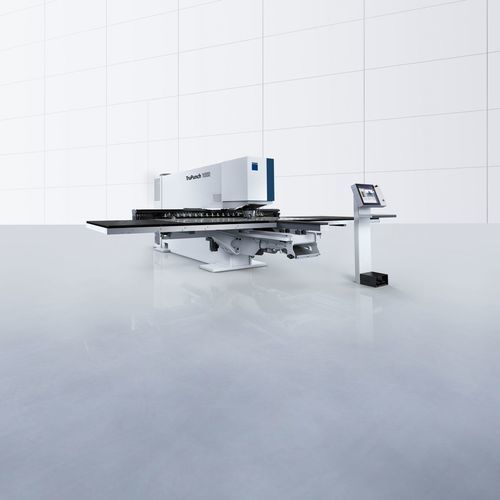

The TruPunch 1000 (S05) is a compact, entry-level punching machine designed for economical production of small series and basic sheet-metal parts. It combines punching, thread forming, extrusion and flange bending in one clamping without repositioning, enabling efficient processing of medium-format sheets and small lot sizes.

Key benefits

• Multi-process capability: supports punching, thread forming, extrusion and flange forming in a single setup.
• Wide tool compatibility: supports TRUMPF tools such as MultiTool and MultiShear for cutting and forming operations.
• Operator-friendly: Touchpoint HMI for intuitive programming and fast ramp-up.
• Material-efficient options: skeleton-free processing and optimized separation reduce scrap.

Applications / Examples

• Electronic components: flanges, cups, roller forming and step features processed with stepping, bracket, rectangular and round cup, and roller tools.
• General sheet parts: beading, MultiCut operations, cup-formed features and offsetting/roll-forming operations.

Equipment & options

• Brush table options for gentle handling of sheets.
• On-Demand Drive: hydraulic punching head control to reduce noise and hydraulic load.
• Parts conveyor belt for reliable ejection of punched parts.
• Touchpoint HMI and TruTops Boost software support for programming and production control.

Technical data (small / medium format)
Model: TruPunch 1000 (S05) small — TruPunch 1000 (S05) medium
Dimensions (W x D x H): 6000 x 7144 x 2155 mm — 6550 x 7144 x 2155 mm
Punching speed (E = 1 mm): 600 1/min — 600 1/min
Marking speed: 1300 1/min — 1300 1/min
X axis punching range: 2050 mm — 2500 mm
Y axis punching range: 1250 mm — 1250 mm
Max sheet thickness: 6.4 mm — 6.4 mm
Max workpiece weight: 150 kg — 150 kg
Max punching force: 165 kN — 165 kN
MultiTool change time: 2.4 s — 2.4 s
Tool positions (small / medium): 15 / 18 (plus 2 clamps)
Part removal sizes (examples): flap punching 180 x 150 mm; with moving table up to 180 x 500 mm; fixed chute up to 460 x 500 mm
Average power consumption (auto-shutdown): 0.3 kW — 0.3 kW; in production: 4.3 kW — 4.3 kW

Characteristics / Specifications

• Model name: TruPunch 1000 (S05)
• Machine type: punching machine (compact, entry-level)
• Processes: punching, thread forming, extrusion, flange bending
• Max sheet thickness: 6.4 mm
• Max punching force: 165 kN
• Punching speed (E = 1 mm): up to 600 1/min
• Marking speed: up to 1300 1/min
• X × Y working area: 2050 × 1250 mm (small) or 2500 × 1250 mm (medium)
• Max part weight: 150 kg
• MultiTool change time: 2.4 s
• Typical power consumption: standby 0.3 kW, production 4.3 kW
