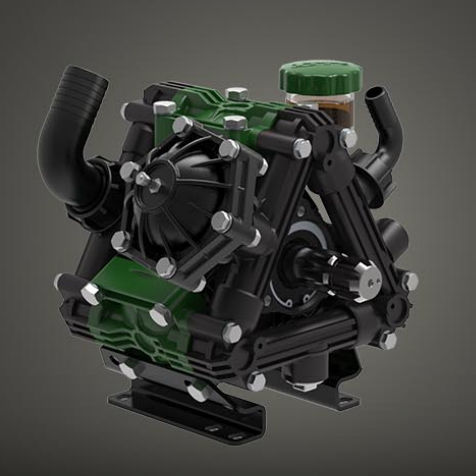

Diaphragm pump ZETA 100 serieswaterhydraulic motorstationary
Add to favorites
Compare this product
Characteristics
- Technology
- diaphragm
- Fluid
- water
- Operation
- hydraulic motor
- Mobility
- stationary
- Domain
- industrial, chemical
- Applications
- sewage, washing, firefighting, spray, descaling
- Material
- aluminum, plastic
- Protection level
- standard, reinforced
- Other characteristics
- mechanical, double, flow, low-pressure
- Flow
Max.: 98 l/min
(25.88886 us gal/min)Min.: 68.2 l/min
(18.01653 us gal/min)- Pressure
Max.: 290 bar
(4,206.094 psi)Min.: 0 bar
(0 psi)- Power
Max.: 3.5 kW
(4.76 hp)Min.: 0.5 kW
(0.68 hp)- Length
318 mm
(13 in)- Width
267.5 mm
(10.53 in)- Height
297 mm
(11.69 in)- Weight
13 kg, 13.2 kg, 13.5 kg, 14.2 kg
(28.66 lb, 29.1 lb, 29.76 lb, 31.31 lb)
Description
The 3-diaphragms pump ZETA 100 produces a flow of 98 l/min and operates at a maximum pressure of 20 bar. It is available with single or double splined/cylindrical shaft.
Semi-Hydraulic diaphragm pump with aluminium plastic coating heads and nylon reinforced manifolds suitable for chemical products, die casted aluminum crankcase with cataphoresis coating resistant to corrosion, valves with spherical design to increase the volumetric efficiency.
It is equipped as standard with the new GREENTECH diaphragm, made of an innovative material that reduces the deformation caused by use and improves the mechanical and chemical resistance.
The pump is also available with MI shaft type (hollow shaft) to be directly coupled to hydraulic motor.
