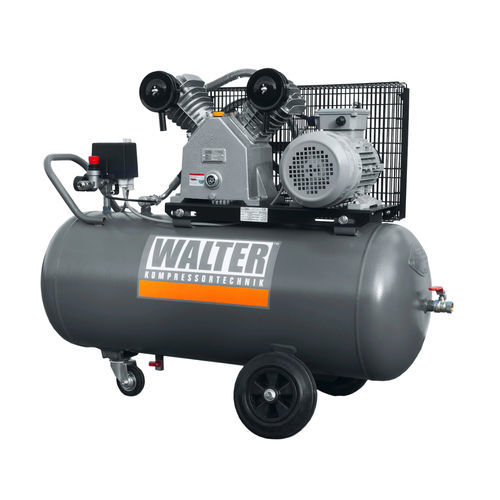

Piston compressor GK 420-2,2/100 Pairelectricstationary
Add to favorites
Compare this product
Characteristics
- Technology
- piston
- Type
- air
- Power source
- electric
- Portability
- stationary
- Application domain
- industrial
- Voltage
- 400 V
- Other characteristics
- tank-mounted, with tank, single-stage, horizontal, 100L
- Tank volume
100 l
(26.4 gal)- Pressure
10 bar
(145.04 psi)- Flow
Min.: 20.4 m³/h
(720.42 ft³/h)Max.: 25.2 m³/h
(889.93 ft³/h)- Power
2.2 kW
(2.99 hp)- Length
1,110 mm
(43.7 in)- Width
380 mm
(14.96 in)- Height
850 mm
(33.46 in)- Weight
86 kg
(189.6 lb)
Description
Overview
Cast-iron piston compressor with a 100 L horizontal tank designed for stable and efficient compressed-air supply in industrial applications. The cast-iron compression unit provides high resistance to mechanical stress and long service life, supporting reliable continuous operation.
Key features
Technical data
Cast-iron piston compressor with a 100 L horizontal tank designed for stable and efficient compressed-air supply in industrial applications. The cast-iron compression unit provides high resistance to mechanical stress and long service life, supporting reliable continuous operation.
Key features
- Two-cylinder pump (2/1) with piston compression
- Electric motor: 2.2 kW, 400 V
- Suction: 420 l/min — Effective delivery: 340 l/min at 10 bar
- Maximum working pressure: 10 bar
- Rotational speed: 1276 rpm
- 100 L horizontal tank increases air reserve for smoother system operation
- Compact footprint: 1110 × 380 × 850 mm; Weight: 86 kg
Technical data
- Tank capacity: 100 L
- Cylinders/stages: 2/1
- Suction (l/min): 420
- Effective flow (l/min): 340
- Working pressure: 10 bar
- Power: 2.2 kW
- Voltage: 400 V
- Weight: 86 kg
- Dimensions (L × W × H): 1110 × 380 × 850 mm
- Speed: 1276 rpm
