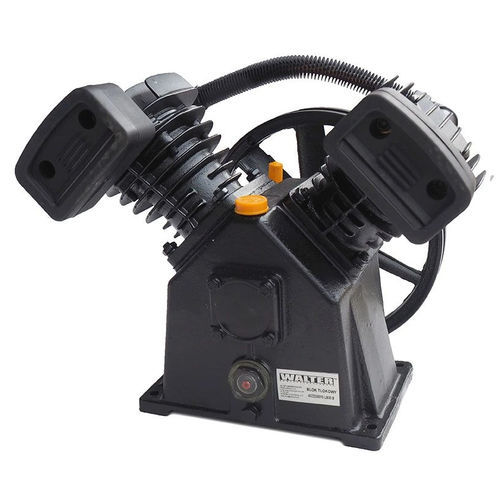

Piston pump BL 500

airair-drivenstationary

Product overview
The piston pump BL 500 is a reliable unit designed to generate compressed air for workshop installations and smaller pneumatic systems. Developed for compressors in the BL 500 series, this pump provides stable operating parameters for daily use. It delivers a suction flow of 420 l/min and a discharge flow of 340 l/min, enabling efficient supply to pneumatic tools and other compressed-air equipment.

BL 500 pump — compact and practical design
The BL 500 features a compact construction that simplifies installation across various compressor configurations. With dimensions of 380 × 280 × 320 mm and a weight of 22.5 kg, the pump integrates easily into new systems and retrofits of existing equipment.

Technical data (extract)
Symbol: 4022230010 LB30
Catalog number: 4022230010 LB30
Suggested motor power (kW): 2.2
Number of pistons / Compression stages: 2/1
Suction flow (l/min): 420
Discharge flow (l/min): 340
Weight (kg): 22.5
Dimensions - length (mm): 380
Dimensions - width (mm): 280
Dimensions - height (mm): 320

Characteristics / Technical specifications

• Intended use: piston pump for BL series compressors (workshop installations, smaller pneumatic systems)
• Suction flow: 420 l/min
• Discharge flow: 340 l/min
• Suggested motor power: 2.2 kW
• Number of pistons / compression stages: 2/1
• Dimensions (L × W × H): 380 × 280 × 320 mm
• Weight: 22.5 kg
• Symbol / catalog number: 4022230010 LB30
