Piston compressor VGK 880-5,5/270 Pairelectricstationary
Add to favorites
Compare this product
Characteristics
- Technology
- piston
- Type
- air
- Power source
- electric
- Portability
- stationary
- Application domain
- industrial
- Voltage
- 400 V
- Other characteristics
- with tank, single-stage, vertical
- Tank volume
370 l
(97.7 gal)- Pressure
10 bar
(145.04 psi)- Flow
Min.: 44.4 m³/h
(1,567.97 ft³/h)Max.: 52.8 m³/h
(1,864.61 ft³/h)- Power
5.5 kW
(7.48 hp)- Length
650 mm
(25.59 in)- Width
700 mm
(27.56 in)- Height
1,800 mm
(70.87 in)- Weight
195 kg
(429.9 lb)
Description
Product description

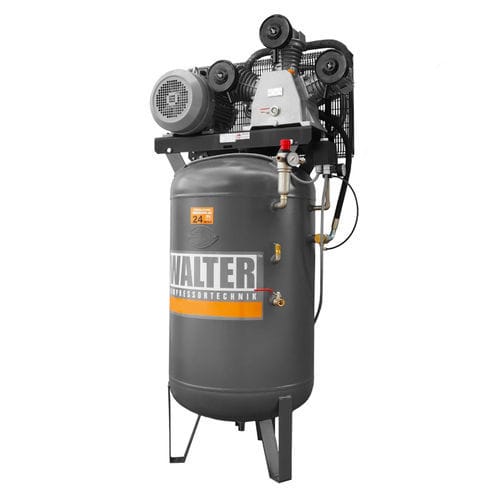

Cast-iron vertical piston compressor with a 270 L tank designed for workshops, service centers and industrial facilities. The vertical tank saves floor space. Suction capacity 880 l/min and discharge 740 l/min, providing sufficient compressed air to supply multiple pneumatic tools.
Construction and drive
Cast-iron compression unit in a 3-cylinder single-stage configuration. Electric motor 5.5 kW, 400 V. Maximum working pressure: 10 bar.
Operational features
Operating speed 902 rpm. Weight 195 kg. Dimensions (L x W x H): 650 x 700 x 1800 mm, ensuring stable operation.
Technical data
Tank capacity L: 270
Cylinders/stage: 3/1
Suction l/min: 880
Discharge l/min: 740
Pressure bar: 10
Power kW: 5.5
Voltage V: 400
Weight kg: 195
Length mm: 650
Width mm: 700
Height mm: 1800
Speed rpm: 902
Specifications
Cast-iron vertical piston compressor with a 270 L tank designed for workshops, service centers and industrial facilities. The vertical tank saves floor space. Suction capacity 880 l/min and discharge 740 l/min, providing sufficient compressed air to supply multiple pneumatic tools.
Construction and drive
Cast-iron compression unit in a 3-cylinder single-stage configuration. Electric motor 5.5 kW, 400 V. Maximum working pressure: 10 bar.
Operational features
Operating speed 902 rpm. Weight 195 kg. Dimensions (L x W x H): 650 x 700 x 1800 mm, ensuring stable operation.
Technical data
Tank capacity L: 270
Cylinders/stage: 3/1
Suction l/min: 880
Discharge l/min: 740
Pressure bar: 10
Power kW: 5.5
Voltage V: 400
Weight kg: 195
Length mm: 650
Width mm: 700
Height mm: 1800
Speed rpm: 902
Specifications
- Tank capacity: 270 L
- Number of cylinders / arrangement: 3/1
- Suction: 880 l/min
- Discharge: 740 l/min
- Working pressure: 10 bar
- Power: 5.5 kW
- Voltage: 400 V
- Weight: 195 kg
- Dimensions (L x W x H): 650 x 700 x 1800 mm
- Speed: 902 rpm
