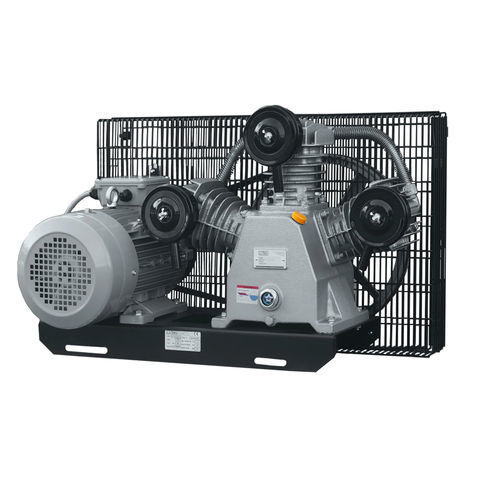

Piston compressor GK 530 P

airelectricstationary

Product
The compressor base unit GK 530 P - PLATE J is a compact unit designed to produce compressed air for workshops and small industrial installations. It operates at a working pressure of 10 bar with an intake flow of 530 l/min and a discharge flow of 440 l/min. The unit is driven by a 3.0 kW motor at 400 V and runs at 1202 rpm, intended as a base for integration into pneumatic systems.

General characteristics

• Compact footprint suitable for limited installation space
• Designed as a compressor base for expansion and integration with pneumatic equipment
• No control or auxiliary elements included — simplified configuration for customisation and system integration

Elements not included in the GK P - PLATE J version

• pressure switch
• non-return valve
• pump governor

Technical data (table)
Cyl/st : 3/1
Intake l/min : 530
Discharge l/min : 440
Pressure bar : 10
Power kW : 3.0
Voltage V : 400
Weight kg : 54
Length cm : 70
Depth cm : 42
Height cm : 43
Speed rpm : 1202

Characteristics / technical specifications

• Model: GK 530 P - PLATE J
• Application: compressor base for workshops and small industrial installations
• Working pressure: 10 bar
• Intake flow: 530 l/min
• Discharge flow: 440 l/min
• Motor power: 3.0 kW
• Voltage: 400 V
• Speed: 1202 rpm
• Dimensions (L × D × H): 70 × 42 × 43 cm
• Weight: 54 kg
• No pressure switch, non-return valve or pump governor (version supplied as base for expansion)
