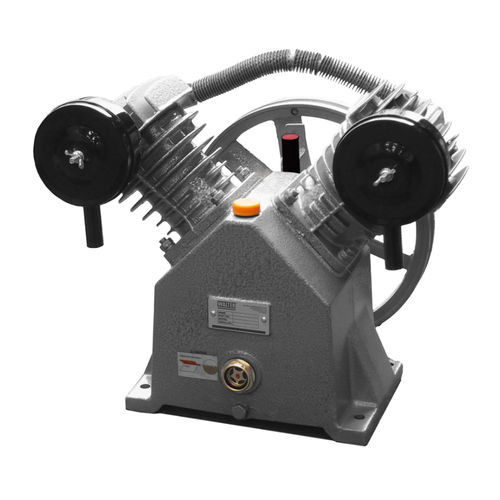

Piston pump GK 630airmotor-drivenstationary
Add to favorites
Compare this product
Characteristics
- Technology
- piston
- Fluid
- air
- Operation
- motor-driven
- Mobility
- stationary
- Flow
Max.: 37.8 m³/h
(1,334.8944 ft³/h)Min.: 33 m³/h
(1,165.384 ft³/h)- Power
4 kW
(5.44 hp)- Length
500 mm
(20 in)- Width
320 mm
(12.6 in)- Height
400 mm
(15.75 in)- Weight
41 kg
(90.39 lb)
Description
Product description
The GK 630 piston pump is designed for construction and refurbishment of compressed air installations. Matched to the GK 630 compressor series, it delivers reliable operating parameters for workshop and industrial applications. The pump provides a suction capacity of 630 L/min and a discharge capacity of 550 L/min, enabling efficient compressed air generation for a range of standard uses.
Motor
The unit is intended to operate with a recommended motor power of 4.0 kW, making it suitable for new compressor assemblies as well as replacement of worn pumps in existing installations.
Construction
The pump features a durable design for straightforward installation in various compressor configurations. Dimensions of 500 × 320 × 400 mm and a weight of 41 kg allow easy integration into both new systems and retrofit projects.
Technical data
The GK 630 piston pump is designed for construction and refurbishment of compressed air installations. Matched to the GK 630 compressor series, it delivers reliable operating parameters for workshop and industrial applications. The pump provides a suction capacity of 630 L/min and a discharge capacity of 550 L/min, enabling efficient compressed air generation for a range of standard uses.
Motor
The unit is intended to operate with a recommended motor power of 4.0 kW, making it suitable for new compressor assemblies as well as replacement of worn pumps in existing installations.
Construction
The pump features a durable design for straightforward installation in various compressor configurations. Dimensions of 500 × 320 × 400 mm and a weight of 41 kg allow easy integration into both new systems and retrofit projects.
Technical data
- Symbol: 4022230020 LBS0
- Catalog number: 4022230020 LBS0
- Recommended motor power: 4.0 kW
- Number of pistons / compression stages: 2/1
- Suction capacity: 630 L/min
- Discharge capacity: 550 L/min
- Weight: 41 kg
- Dimensions (L×W×H): 500 × 320 × 400 mm
