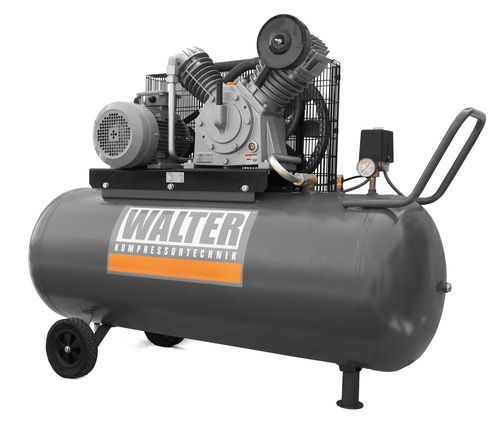

Piston compressor HGK 650-4,0/270 Pairelectricstationary
Add to favorites
Compare this product
Characteristics
- Technology
- piston
- Type
- air
- Power source
- electric
- Portability
- stationary
- Application domain
- industrial
- Voltage
- 400 V
- Other characteristics
- tank-mounted, with tank, high-pressure, two-stage, horizontal
- Tank volume
270 l
(71.3 gal)- Pressure
13 bar
(188.55 psi)- Flow
Max.: 36 m³/h
(1,271.33 ft³/h)Min.: 30 m³/h
(1,059.44 ft³/h)- Power
4 kW
(5.44 hp)- Length
1,620 mm
(63.78 in)- Width
650 mm
(25.59 in)- Height
1,150 mm
(45.28 in)- Weight
205 kg
(451.9 lb)
Description
Description
Cast-iron, high-pressure piston compressor HGK 650-4,0/270 P with a 270 L horizontal tank designed for reliable and continuous industrial operation. The two-cylinder cast-iron assembly offers resistance to heavy loads and extended service life of critical components.
The compressor is driven by a 4.0 kW motor at 400 V. Suction capacity is 600 l/min and effective delivery is 500 l/min at a maximum working pressure of 13 bar. A rotational speed of 817 rpm ensures stable compressed air production under sustained use.
The 270 L horizontal tank provides a sufficient air reserve. Dimensions 1620 × 650 × 1150 mm and weight 205 kg ensure stability and ease of installation. Robust construction and optimized operating parameters make the unit suitable for demanding industrial environments.
Technical data:
Tank capacity L: 270
Cylinders/stages: 2/2
Suction l/min: 600
Delivery l/min: 500
Pressure bar: 13
Power kW: 4.0
Voltage V: 400
Weight kg: 205
Length mm: 1620
Width mm: 650
Height mm: 1150
Speed rpm: 817
Features / technical specifications
Cast-iron, high-pressure piston compressor HGK 650-4,0/270 P with a 270 L horizontal tank designed for reliable and continuous industrial operation. The two-cylinder cast-iron assembly offers resistance to heavy loads and extended service life of critical components.
The compressor is driven by a 4.0 kW motor at 400 V. Suction capacity is 600 l/min and effective delivery is 500 l/min at a maximum working pressure of 13 bar. A rotational speed of 817 rpm ensures stable compressed air production under sustained use.
The 270 L horizontal tank provides a sufficient air reserve. Dimensions 1620 × 650 × 1150 mm and weight 205 kg ensure stability and ease of installation. Robust construction and optimized operating parameters make the unit suitable for demanding industrial environments.
Technical data:
Tank capacity L: 270
Cylinders/stages: 2/2
Suction l/min: 600
Delivery l/min: 500
Pressure bar: 13
Power kW: 4.0
Voltage V: 400
Weight kg: 205
Length mm: 1620
Width mm: 650
Height mm: 1150
Speed rpm: 817
Features / technical specifications
- Tank capacity: 270 L
- Cylinders/stages: 2/2
- Suction (l/min): 600
- Delivery (l/min): 500
- Working pressure: 13 bar
- Power: 4.0 kW
- Supply voltage: 400 V
- Dimensions (L×W×H): 1620 × 650 × 1150 mm
- Weight: 205 kg
- Rotational speed: 817 rpm
