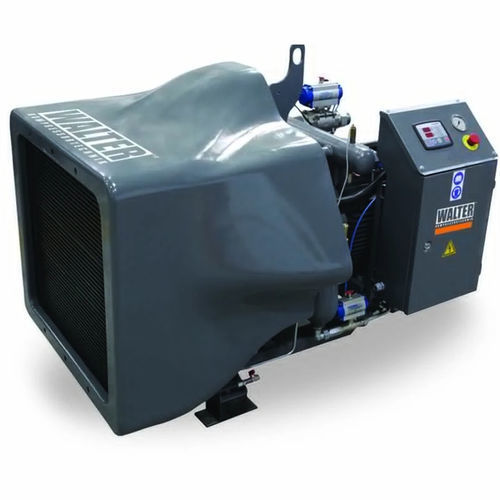

Piston compressor HPFF 108airelectrically-poweredstationary
Add to favorites
Compare this product
Characteristics
- Technology
- piston
- Type
- air
- Power source
- electrically-powered
- Portability
- stationary
- Application domain
- industrial
- Voltage
- 400 V
- Other characteristics
- high-pressure, electric
- Pressure
Max.: 40 bar
(580.15 psi)Min.: 12 bar
(174.05 psi)- Flow
108.42 m³/h
(3,828.82 ft³/h)- Power
15 kW
(20.39 hp)- Length
1,100 mm
(43.31 in)- Width
1,300 mm
(51.18 in)- Height
1,030 mm
(40.55 in)- Weight
421 kg
(928.1 lb)
Description
Product information
High-pressure piston compressor for industrial applications requiring compressed air between 12 and 40 bar. Model HPFF 108 is designed for continuous operation and integration into compressed-air systems, delivering a nominal flow of 1807 l/min at 15 kW.
Technical data
Pressure (bar): 12-40
Speed (rpm): 1500
Connection: 1"
Power: 15 kW
Flow: 1807 l/min
Voltage (V/Hz): 400/50
Weight (kg): 421
Dimensions (L x W x H, mm): 1100 x 1300 x 1030
Specifications
High-pressure piston compressor for industrial applications requiring compressed air between 12 and 40 bar. Model HPFF 108 is designed for continuous operation and integration into compressed-air systems, delivering a nominal flow of 1807 l/min at 15 kW.
Technical data
Pressure (bar): 12-40
Speed (rpm): 1500
Connection: 1"
Power: 15 kW
Flow: 1807 l/min
Voltage (V/Hz): 400/50
Weight (kg): 421
Dimensions (L x W x H, mm): 1100 x 1300 x 1030
Specifications
- Operating pressure: 12-40 bar
- Rotation speed: 1500 rpm
- Connection size: 1"
- Motor power: 15 kW
- Nominal flow: 1807 l/min
- Supply voltage: 400 V / 50 Hz
- Net weight: 421 kg
- Dimensions (L x W x H): 1100 x 1300 x 1030 mm
