Reciprocating compressor HGK 650reciprocating pistonpistonair
Add to favorites
Compare this product
Characteristics
- Technology
- reciprocating, reciprocating piston, piston
- Type
- air
- Power source
- pneumatic
- Portability
- stationary
- Voltage
- 400 V
- Other characteristics
- horizontal, high-pressure, with tank
- Tank volume
270 l
(71.3 gal)- Pressure
15 bar
(217.56 psi)- Flow
Max.: 33.6 m³/h
(1,186.57 ft³/h)Min.: 28.2 m³/h
(995.87 ft³/h)- Power
4 kW
(5.44 hp)- Length
1,620 mm
(63.78 in)- Width
650 mm
(25.59 in)- Height
1,150 mm
(45.28 in)- Weight
205 kg
(451.9 lb)
Description
Description

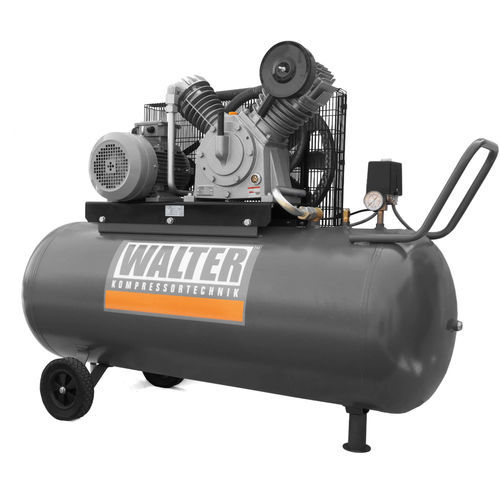

Cast-iron high-pressure piston compressor HGK 650-4,0/270 P 15 with a 270 L horizontal tank designed for reliable and efficient operation at high pressure. The two-cylinder 2/2 cast-iron unit provides resistance to heavy loads and long service life of key components. The compressor is fitted with a 4.0 kW motor supplied at 400 V. The unit achieves a suction capacity of 560 l/min and an effective delivery of 470 l/min at a maximum working pressure of 15 bar. A rotation speed of 776 rpm ensures even and stable compressed air production during continuous use.
Design and dimensions
The 270 L horizontal tank maintains an adequate air reserve, while dimensions 1620 × 650 × 1150 mm and a weight of 205 kg ensure stability and ease of installation. Robust construction and optimized operating parameters make the compressor efficient and reliable in various conditions.
Technical data
Cast-iron high-pressure piston compressor HGK 650-4,0/270 P 15 with a 270 L horizontal tank designed for reliable and efficient operation at high pressure. The two-cylinder 2/2 cast-iron unit provides resistance to heavy loads and long service life of key components. The compressor is fitted with a 4.0 kW motor supplied at 400 V. The unit achieves a suction capacity of 560 l/min and an effective delivery of 470 l/min at a maximum working pressure of 15 bar. A rotation speed of 776 rpm ensures even and stable compressed air production during continuous use.
Design and dimensions
The 270 L horizontal tank maintains an adequate air reserve, while dimensions 1620 × 650 × 1150 mm and a weight of 205 kg ensure stability and ease of installation. Robust construction and optimized operating parameters make the compressor efficient and reliable in various conditions.
Technical data
- Tank capacity: 270 L
- Cylinders: 2/2
- Suction: 560 l/min
- Effective delivery: 470 l/min
- Working pressure: 15 bar
- Power: 4.0 kW
- Voltage: 400 V
- Weight: 205 kg
- Dimensions (L×W×H): 1620 × 650 × 1150 mm
- Rotation speed: 776 rpm
