Piston pump GK 420airmotor-drivenstationary
Add to favorites
Compare this product
Characteristics
- Technology
- piston
- Fluid
- air
- Operation
- motor-driven
- Mobility
- stationary
- Flow
Min.: 20.4 m³/h
(720.4192 ft³/h)Max.: 25.2 m³/h
(889.9296 ft³/h)- Power
2.2 kW
(2.99 hp)- Length
380 mm
(15 in)- Width
280 mm
(11.02 in)- Height
320 mm
(12.6 in)- Weight
22.5 kg
(49.6 lb)Min.: 22.5 kg
(49.6 lb)Max.: 22.5 kg
(49.6 lb)
Description
Description

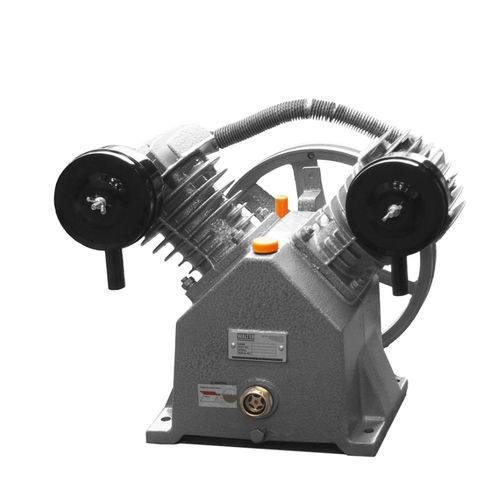

Piston pump GK 420 is designed for building or upgrading compressed air installations. The model is intended for GK 420 series compressors and provides stable operating parameters for workshop and industrial use. It offers a suction capacity of 420 l/min and a discharge capacity of 340 l/min. The unit operates with a recommended motor power of 2.2 kW. Its sturdy construction ensures stable and efficient operation of the compressed air system.
Design and dimensions
Compact dimensions 380 × 280 × 320 mm and weight 22.5 kg make the pump easy to mount and integrate into various compressor configurations. Thanks to its considered design, the GK 420 is suitable as a service replacement part or as a base for assembling a complete compressor unit.
Technical specifications
Piston pump GK 420 is designed for building or upgrading compressed air installations. The model is intended for GK 420 series compressors and provides stable operating parameters for workshop and industrial use. It offers a suction capacity of 420 l/min and a discharge capacity of 340 l/min. The unit operates with a recommended motor power of 2.2 kW. Its sturdy construction ensures stable and efficient operation of the compressed air system.
Design and dimensions
Compact dimensions 380 × 280 × 320 mm and weight 22.5 kg make the pump easy to mount and integrate into various compressor configurations. Thanks to its considered design, the GK 420 is suitable as a service replacement part or as a base for assembling a complete compressor unit.
Technical specifications
- Symbol: 2004050101 J
- Catalogue number: 2004050101 J
- Recommended motor power (kW): 2.2
- Number of pistons / Compression stages: 2/1
- Performance - Suction (l/min): 420
- Performance - Discharge (l/min): 340
- Weight (kg): 22.5
- Dimensions - Length (mm): 380
- Dimensions - Width (mm): 280
- Dimensions - Height (mm): 320
