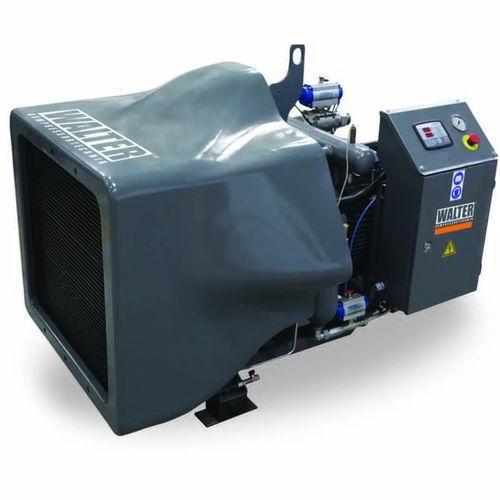

Piston compressor HPFF 166airelectrically-poweredstationary
Add to favorites
Compare this product
Characteristics
- Technology
- piston
- Type
- air
- Power source
- electrically-powered
- Portability
- stationary
- Application domain
- industrial
- Voltage
- 400 V
- Other characteristics
- high-pressure, high-performance
- Pressure
Min.: 12 bar
(174.05 psi)Max.: 40 bar
(580.15 psi)- Flow
166.02 m³/h
(5,862.94 ft³/h)- Power
30 kW
(40.79 hp)- Length
1,175 mm
(46.26 in)- Width
1,580 mm
(62.2 in)- Height
1,100 mm
(43.31 in)- Weight
630 kg
(1,388.9 lb)
Description
Product overview
High-pressure piston compressor for industrial use. Model HPFF 166 delivers adjustable discharge pressure and high free air delivery suitable for integrated compressed-air systems and process applications.
Technical specifications
Applications
Delivery and services
High-pressure piston compressor for industrial use. Model HPFF 166 delivers adjustable discharge pressure and high free air delivery suitable for integrated compressed-air systems and process applications.
Technical specifications
- Pressure (bar): 12–40
- Speed (rpm): 1500
- Connection: 1"
- Power (kW): 30
- Capacity (l/min): 2767
- Voltage (V/Hz): 400/50
- Weight (kg): 630
- Length (mm): 1175
- Width (mm): 1580
- Height (mm): 1100
Applications
- Compressed-air supply for industrial process lines and pneumatic tools
- Integration in central compressed-air installations
- Workshops and production facilities requiring high-pressure air
Delivery and services
- Standard configuration as specified; customization on request
- Spare parts and maintenance support available
- Installation guidance and technical documentation provided
