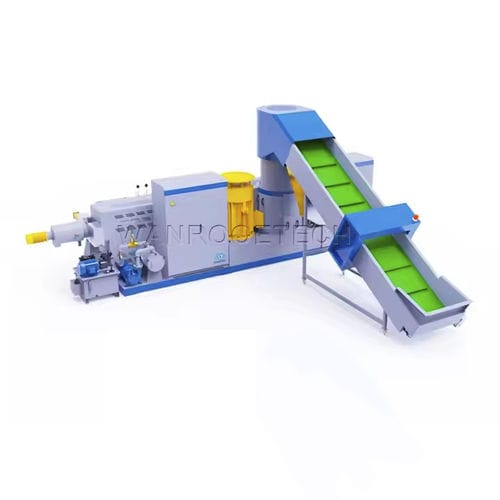

Water ring pelletizer PNHS-85

for plasticsfor the plastics industryhigh-speed

Applications: This water-cooling single screw plastic pellet making machine is single stage plastic regenerative pelletizer, which is suitable for many kinds of plastic waste materials recycling and making pellets, such as PP, HDPE, LDPE, LLDPE Film and clean woven/nonwoven bag materials, etc. The film can be pressed in the compressor and then be pelletized. Process flow: Conveying feeding→ Metal detector →Film Agglomerator→Degassing single screw extruder→Hydraulic filer→ Mould head →water ring cutting →Dewatering machine→ Air dryer Blowing system→ Storage hoper→ Finished product packing. Detailed description of each items: 1.Conveyor: convey PP PE film or flakes into compactor. 2.PE film Agglomerator/Compactor: crushing and compress film, and feed compressed film into extruder forced, to make the production capacity high and stable. 3.Extruding system: plasticizing material and exhausting gas. 4.High-speed Net exchanging system and Die-head: filter material impurity, to make production more stable. 5.Water ring pelletizing machine: cutting pellets in water. 6.Water tank: cooling pellets. 7.Dewater machine: make pellets dry. 8.Vibration sieve: remove bad pellet and keep good pellet. 9.Air Blower: convey good pellets into silo. 10.Storage silo: keep pellet. Equipment Lists: 1.Belt conveyor (can equip the metal detector). 2.Agglomerator/Compactor machine. 3.Extruder. 4.Die head and screen changing device. 5.Water ring cutter. 6.Vibrating screen. 7.Vertical dewatering machine. 8.Air drying system. 9.Cyclone hopper.
