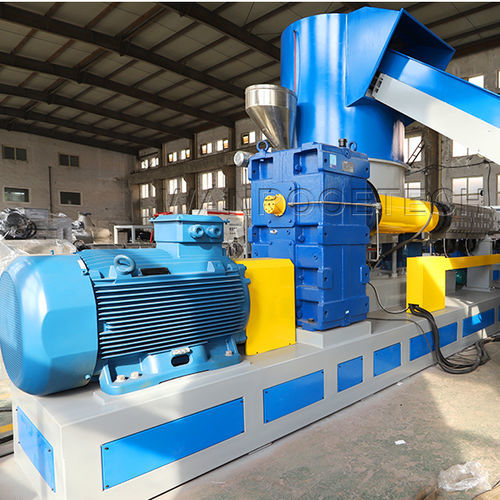

Twin screw pelletizer PNHS series

water ringwetfor plastics

Double Stage PP PE Plastic Film Woven Bag Plastic Granulating Line is double stage plastic regenerative pelletizer, which is suitable for many kinds of plastic waste materials recycling and making pellets, such as PE, HDPE, LDPE, PP, BOPP plastic film, bag,fiber,rope scrap material and etc. The film can be pressed in the compressor and then be pelletized. 1.Applicable plastic materials: PE, HDPE, LDPE, PP, BOPP, PET, PA/Nylon, etc. 2.Material shapes: film, bag,fiber,rope scrap. 3.Material types: rolls, loose, bundled. 4.Material comes from offcut, industry defective materials, washed materials and printed materials. Process flow: Conveying feeding→ Metal detector →Film Agglomerator /Compactor →1# Degassing screw extruder →1# Hydraulic filer exchanger→2# screw extruder →2# Hydraulic filer exchanger→ Mould head →water ring cutting →Dewatering machine→ Air dryer Blowing system→ Storage hopper→ Finished product packing. Features : 1. Allow free assembling of the screw component, based on raw material type. 2.Using the suitable die head for palletizing, such as water ring cutting, under-water cutting and hot face cutting. 3.High efficient force feeder ensures stable high capacity material feeding, low power consumption. 4. Main screw has vacuum exhaustion. 5.Water ring granulator machine, attached with dryer. Single screw extruder, with specially designed screw, barrel, venting system, ensure the good quality of the final products. 6. Pelletizing style: standard cutting with extrusion mould. Even cutting ensures with good shape.
