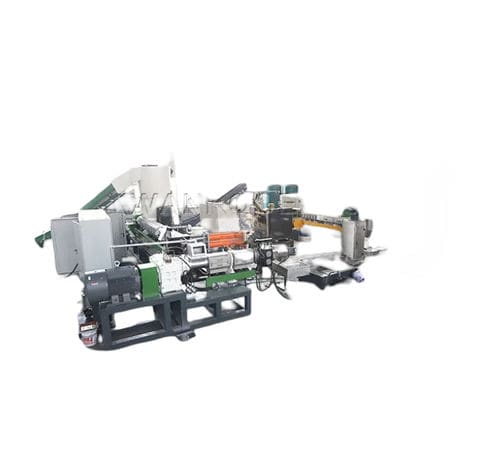

Single screw extruder PNHS series

pelletizingfor PPfor PE

Process flow: Conveying feeding→ Metal detector →Film Agglomerator /Compactor →1# Degassing screw extruder →1# Hydraulic filer exchanger→2# screw extruder →2# Hydraulic filer exchanger→ Mould head →water ring cutting →Dewatering machine→ Air dryer Blowing system→ Storage hopper→ Finished product packing. Features : 1. Allow free assembling of the screw component, based on raw material type. 2. Using the suitable die head for palletizing, such as water ring cutting, under-water cutting and hot face cutting. 3. High efficient force feeder ensures stable high capacity material feeding, low power consumption. 4. Main screw has vacuum exhaustion. 5. Water ring granulator machine, attached with dryer. 6. Single screw extruder, with specially designed screw, barrel, venting system, ensure the good quality of the final products. 7. biodegradable plastic granulator pelletizing style: standard cutting with extrusion mould. Even cutting ensures good shape. Applications: Applicable plastic materials: PBAT PLA, PE, HDPE, LDPE, PP, BOPP, PET, PA/Nylon, etc Material shapes: film, bag, fiber, rope scrap Material types: rolls, loose, bundled The material comes from offcut, industry defective materials, washed materials and printed materials.
