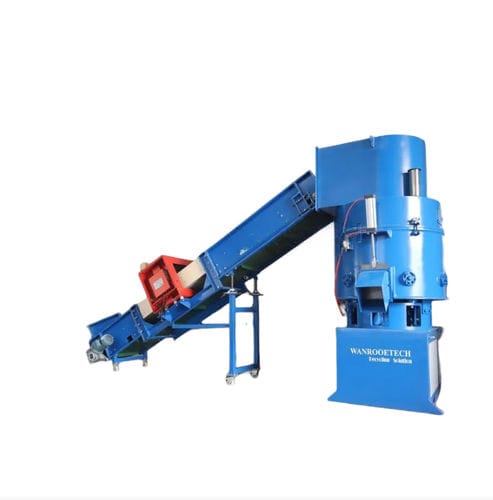

Waste mill PNAG series

bladestainless steelstainless steel

The agglomerator (plastic film granulator) is a kind of waste thermoplastic thin film, and wall thickness is less than 2 mm of products can be granulated immediately. It can be wastes or thin film of soft polyvinyl chloride (PVC), high and low-pressure polyethylene, polypropylene and polystyrene, other thermoplastic plastic on aggregate, also on foaming polystyrene abandoned products for granulation. Plastic Film Agglomerator Compactor Densifier Machine Working principle: Putting the waste into the machine pot body makes the material be quickly cut by the high-speed rotating turn of the blade and the fixed blade shear, then the material along the pot body wall by the knife dish centrifugal force function, at the same time, the material turning up and down by paddle and from all around to move towards to the center of the pot body. The friction of the material itself and friction of the pot wall and blades produce much friction heat under the high speed, making the temperature of the material rises to the half-plastic condition and connects to a small lump. Before the materials will block, advanced preparation quantitative water will all spray into the material. The cold water that touches the hot materials will gasify and take out the surface heat soon, making the surface of the materials cool quickly and avoid blocking, then after the crushing effect between the rotary blade and fixed blade cut into particles(irregular size materials). During the crushing, Also may join the appropriate color pigments according to needs. Stainless Steel Material Material contact parts are used 304 stainless steel, welding fine polished smooth, easy to clean.
