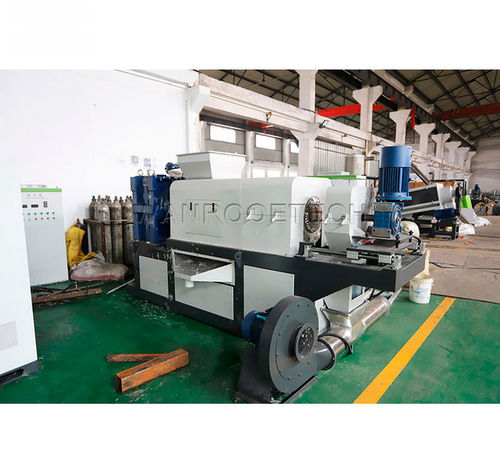

Continuous dryer PNSP series

for plastic pelletsgranulator

Plastic Squeezing Pelletizing line is a full automatic Squeezing & Pelletizing Machine to the film and woven bags, with the screw squeezing and electrical heating, make the materials have high degree of drying and full plasticizing, low power consumption, high output. The final moisture is only 3-5%. The capacity would be customized according to the requests of clients. Equipment composition structure: feed screw, feed bin, reducer, extrusion screw barrel, die head, air-cooled die face pelletizing system, cooling fan, storage bin, drainage system, control cabinet! The control system of the equipment is manufactured by the European CE standard design machine! The squeezing granulation system. The working process of the equipment is: the material enters the extrusion screw and screw barrel from the inlet, and the extrusion screw squeezes the material to the outlet. In this process, the plasticized material is squeezed out, the water flows out from the leaking tank, and the pelletizing knife cuts the extruded semi-plasticized dry plastic into pellets. The fan conveys the granular material to Silo while cooling the cut plastic particles. The general processing materials are PE, PP, BOPP, PVC, PS material film, and also can be nylon fishing net and diapers. At the same time, it can also be used as a means of processing paper pulp, and the squeezed and pelletized paper pulp can be used as a power generation combustion material in a power plant.
