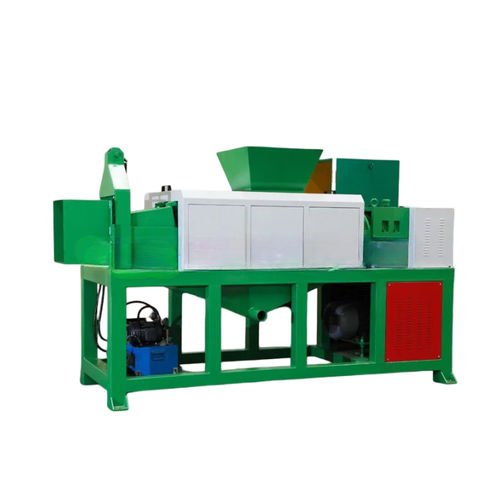

Dry granulator PNSD series

for plasticsfor wastefor PET

Plastic squeezer dryer is used for dewatering drying washed PE LDPE HDPE PVC film/ PP woven bags. After the squeezer, the final product is a small plastic pellet(the moisture ≤1%) that can put into the plastic extruder directly. Plastic squeezer machine saves 3 machines after washing line compares with the traditional recycling line. Save one dewatering machine, one drying system, and one agglomerator. So plastic squeezing machine is an economical and necessary machine for the PP PE recycling pelletizing line. PP PE LDPE HDPE PVC Film Plastic Squeeze Dryer Working process: By plastic film squeezing dryer, the washed film can be squeezed to dehydrate water of films or fluffy stuff. The film is squeezed to become flakes or blocks. The film plastic moisture will be lowered down to 1-3%. Squeeze Screw The screw is a whole round steel raw material cutting, no welding, the material selected is 38CrMoAi senior nitride steel. It has the characteristics of anti-wear and anti-fatigue, high strength, etc. After processing and forming, it is nitrided, quenched and straightened several times Barrel The barrel is also cut from whole round steel without welding, and the material chosen is 38CrMoAi high grade nitride steel. It has the characteristics of anti-wear and anti-fatigue, high strength, etc. After processing and forming, it is nitrided, quenched and straightened for several times.
