Waste mill PNAG series

PAbladehigh-speed

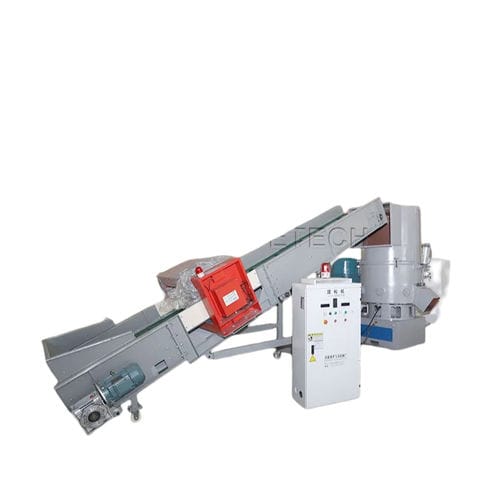

High-speed chemical fiber agglomerator machine is a kind of equipment to recycle waste PA (commonly known as nylon) and PET (commonly known as polyester) film, silk and cloth directly into pellets. Chemical Fiber Agglomerator Machine Working principle: After the waste material is put into the agglomerator machine pot, the material is quickly cut into pieces by the shearing action of the rotating knife blade and fixed knife blade at high speed. The shredded material or piece flows along the wall of the pot under the action of centrifugal force of the rotating knife plate, while the material is turned up and down by the action of the lower paddle, and moves from all around to the center of the pot. Due to the friction between the material itself and the friction with the pot wall and blade at high speed, a large amount of frictional heat is generated, so that the temperature of the material rises rapidly to a semi-plasticized state and sticks to each other into small pieces. Before the material will be lumped, the pre-prepared quantitative water will be sprayed into the material, the cold water meets the hot material, quickly gasification, take away the heat of the material surface so that the surface of the material is sharply cooled to prevent lumping, and then the crushing effect between the rotating knife blade and the fixed knife blade makes it cut into particles (irregular size of granules). In the process of chopping, appropriate pigments can be added for coloring as needed.
