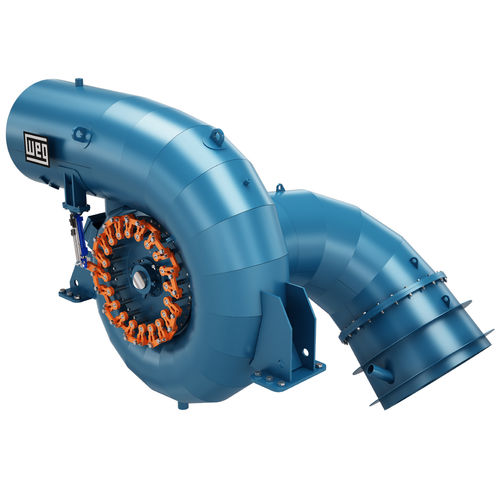

Hydraulic turbine

FrancisKaplanPelton

The hydro turbines and hydromechanical equipment are highly reliable, and the efficiency is guaranteed by state-of-the-art equipment and qualified staff with extensive experience in the manufacturing process. Francis, Kaplan, Open Pit and Pelton hydraulic turbines are available. The Pelton turbines are designed to operate at high head at low flow rates. The runner of a Pelton turbine consists of a circular disc with buckets in hemispherical or bowl shape that are fixed around it. They can be mounted to a horizontal shaft with 1 or 2 nozzles per runner or vertical shaft with up to 6 nozzles per runner. The Francis turbines (single or double) are used on a wide range of heads and flows. They are designed with a single runner for horizontal and vertical applications and also with double runner for horizontal application. The Kaplan turbines are used on a low head and larger flows and can reach high efficiency levels. The Kaplan turbines can be designed for horizontal and vertical applications and its runner consists of movable blades allowing to adjust the water discharge and the turbine output. We can supply the following types: Horizontal Kaplan, S-Type, Open Pit and Vertical Kaplan.
