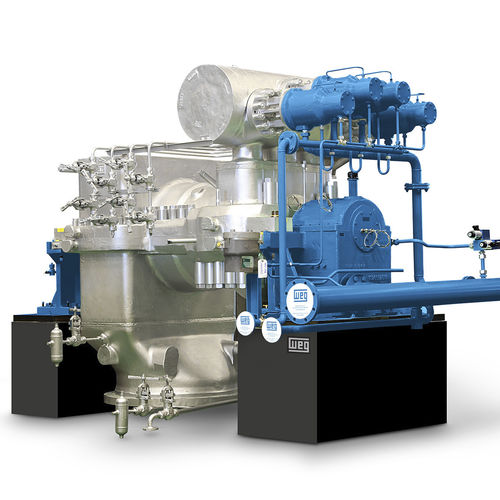

Steam turbine TM-A

CHPimpulse

WEG steam turbines, TM-A and TME-A lines, are backpressure, multiple stages and designed with impulse technology. They are available with or without controlled steam extraction and operate at up to 1,015 psia (70 bara) inlet steam pressure and up to 968 °F (520 °C) inlet steam temperature, with nominal output power up to 55 MW. These steam turbine lines were developed for combined heat and power (CHP) plants, such as sugar and ethanol plants, pulp & paper industries, petrochemical, refineries, among others. Technical Characteristics Impulse tecnology and multi-stage Backpressure with or without controlled extraction Nominal power output up to 55 MW Inlet pressure up to 1,015 psia / 70 bar(a) Inlet temperature up to 968 °F / 520 °C Comprehensive, integrated and smart solution With a comprehensive range of products and solutions tailored for steam power generation and mechanical drives, WEG designs, manufactures, and installs steam turbines, gearboxes, generators, as well as control and automation panels. All the components are designed using advanced technology and adhere to rigorous international quality standards. The steam turbines are available for various industrial segments and operate with steam derived from diverse sources like biomass, biogas, natural gas, heat recovery, waste-to-energy, and more. Segments: Food and Beverage Pulp and Paper Cement Corn Ethanol Wood Mining Oil, Gas and Petrochemicals Waste-to-energy Steel Sugar-energy Thermal power plants Others
