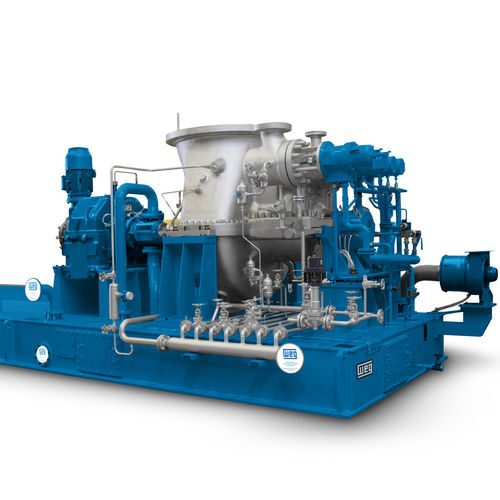

Steam turbine TMC

impulse

WEG steam turbines, TMC and TMCE lines, are condensing type and built with impulse technology. They have multiple stages and are available with or without controlled extraction. These turbines operate under maximum conditions of 652 psia (45 bara) inlet steam pressure, 842°F (450 °C) inlet steam temperature and can generate up to 17 MW. The TMC and TMCE steam turbine lines are used to generate electricity, applied in thermal power plants, sugar & ethanol, pulp and paper, petrochemical, among others. Technical Characteristics Impulse tecnology and multi-stage Condensing with or without controlled extraction Nominal power output up to 17 MW Inlet pressure up to 652 psia / 45 bar(a) Inlet temperature up to 842 °F / 450 °C Comprehensive, integrated and smart solution With a comprehensive range of products and solutions tailored for steam power generation and mechanical drives, WEG designs, manufactures, and installs steam turbines, gearboxes, generators, as well as control and automation panels. All the components are designed using advanced technology and adhere to rigorous international quality standards. The steam turbines are available for various industrial segments and operate with steam derived from diverse sources like biomass, biogas, natural gas, heat recovery, waste-to-energy, and more. Segments: Food and Beverage Pulp and Paper Cement Corn Ethanol Wood Mining Oil, Gas and Petrochemicals Waste-to-energy Steel Sugar-energy Thermal power plants Others
