Steam turbine TM

impulse

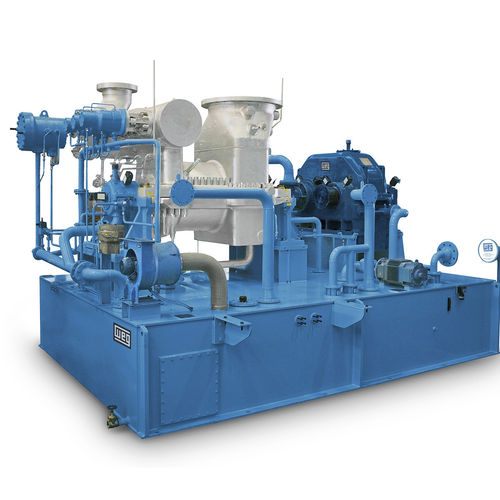

WEG steam turbines, TM and TME lines, are backpressure, multiple stages and designed with impulse technology. They are available with or without controlled steam extraction and operate at up to 652 psia (45 bara) inlet steam pressure and up to 842 °F (450 °C) inlet steam temperature, with nominal output power up to 20 MW. These steam turbine lines were designed to drive generators, compressors, pumps, mills and other mechanical equipment. Technical Characteristics Impulse tecnology and multi-stage Backpressure with or without controlled extraction Inlet pressure up to 652 psia / 45 bar(a) Inlet temperature up to 842 °F / 450°C Comprehensive, integrated and smart solution With a comprehensive range of products and solutions tailored for steam power generation and mechanical drives, WEG designs, manufactures, and installs steam turbines, gearboxes, generators, as well as control and automation panels. All the components are designed using advanced technology and adhere to rigorous international quality standards. The steam turbines are available for various industrial segments and operate with steam derived from diverse sources like biomass, biogas, natural gas, heat recovery, waste-to-energy, and more. Segments: Food and Beverage Pulp and Paper Cement Corn Ethanol Wood Mining Oil, Gas and Petrochemicals Waste-to-energy Steel Sugar-energy Thermal power plants Others
