Three-phase alternator G Rail
brushlessthree-phase4-pole

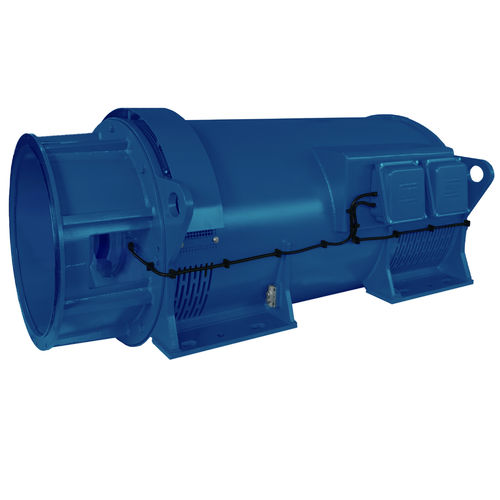

Three-phase alternator - G Rail - WEG Gear Systems GmbH - brushless / three-phase / 4-pole
Three-phase alternator - G Rail - WEG Gear Systems GmbH - brushless / three-phase / 4-pole
Three-phase alternator - G Rail - WEG Gear Systems GmbH - brushless / three-phase / 4-pole - image - 2
Add to favorites
Compare this product

Characteristics

Phase
three-phase
Type
brushless, three-phase
Number of poles
4-pole, 6-pole, 8-pole, 10-pole, 12-pole
Protection class
IP23
Product applications
applications, plate , frame
Domain
railway
Other characteristics
traction
Power in kVA

Max.: 4,000 kVA
(5,438.48 hp)

Min.: 100 kVA
(135.96 hp)

Voltage

Max.: 4,000 V

Min.: 220 V

Supply frequency

50 Hz, 60 Hz

Description

The traction brushless synchronous alternators (three-phase or polyphase) for railway and road applications are manufactured with steel plate or cast iron frame (depending on the degree of protection chosen), complying with the standards IEC61373, NBR 5052 and NBR5117. Technical Features Output: 100 to 4,000 kVA Voltage: 220 to 4,000 V Frequency: 50 and 60 Hz Degree of protection: IP23 Insulation class: 180 (H) Excitation: brushless or slip ring Number of poles: 4 to 12 Winding system with preformed coils Other features on request
