Three-phase alternator G Traction
brushlessthree-phase4-pole

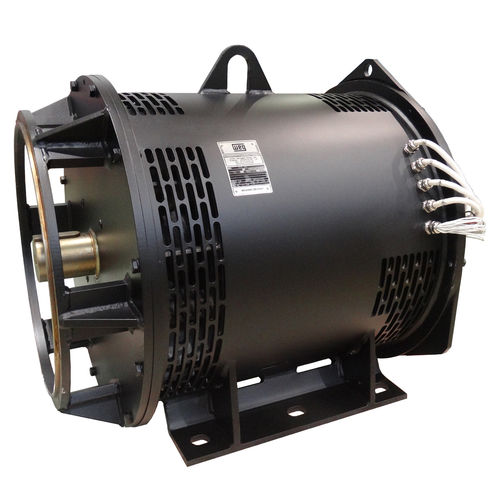

Three-phase alternator - G Traction - WEG Gear Systems GmbH - brushless / three-phase / 4-pole
Three-phase alternator - G Traction - WEG Gear Systems GmbH - brushless / three-phase / 4-pole
Three-phase alternator - G Traction - WEG Gear Systems GmbH - brushless / three-phase / 4-pole - image - 2
Add to favorites
Compare this product

Characteristics

Phase
three-phase
Type
brushless, three-phase
Number of poles
4-pole, 6-pole
Protection class
IP23
Product applications
baggage, building, bus, plate , frame
Other characteristics
traction
Power in kVA

Max.: 50 kVA
(67.98 hp)

Min.: 2.46 kVA
(3.34 hp)

Voltage

Max.: 6,600 V

Min.: 220 V

Supply frequency

50 Hz, 60 Hz

Description

Brushless (three-phase or polyphase) synchronous traction alternators are manufactured with steel plate or cast iron frame (depending on the selected protection level), meeting the requirements established in IEEE Std 11, IEC 60034, IEEE Std 115, IEC 60349 and IEC 61373, with focus on bus, trucks and off-road vehicles. Applications Alternators applicable to road (buses, trucks), airport (buses, towing vehicles, load carriers, baggage tractors, passenger steps, conveyors, loaders), farming (tractors, sprayers, harvesters), building (pavers, compactors, excavators, drilling) and mining (off-road trucks, buses and hybrid trucks, excavators).
