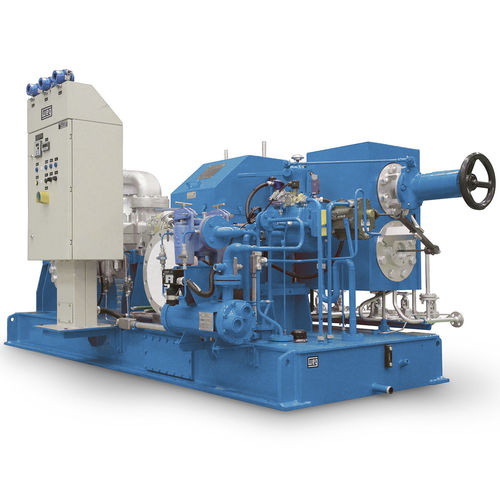

Steam turbine TS-P

impulse

WEG steam turbine, TS-P line, is backpressure type, single stage and built with impulse technology. It operates on maximum conditions of 943 psia (65 bara) inlet steam pressure, 896 °F (480 °C) inlet steam temperature and can produce up to 2MW. This steam turbine line has been especially designed to drive mechanical equipment such as pumps, compressors, blowers, and others. It has constructive characteristics that meet the requirements of API 611 standard. Technical Characteristics Impulse tecnology and single stage Backpressure Nominal power output up to 2 MW Inlet pressure up to 943 psia / 65 bar(a) Inlet temperature up to 896 °F / 480 °C Comprehensive, integrated and smart solution With a comprehensive range of products and solutions tailored for steam power generation and mechanical drives, WEG designs, manufactures, and installs steam turbines, gearboxes, generators, as well as control and automation panels. All the components are designed using advanced technology and adhere to rigorous international quality standards. The steam turbines are available for various industrial segments and operate with steam derived from diverse sources like biomass, biogas, natural gas, heat recovery, waste-to-energy, and more. Segments: Food and Beverage Pulp and Paper Cement Corn Ethanol Wood Mining Oil, Gas and Petrochemicals Waste-to-energy Steel Sugar-energy Thermal power plants Others
