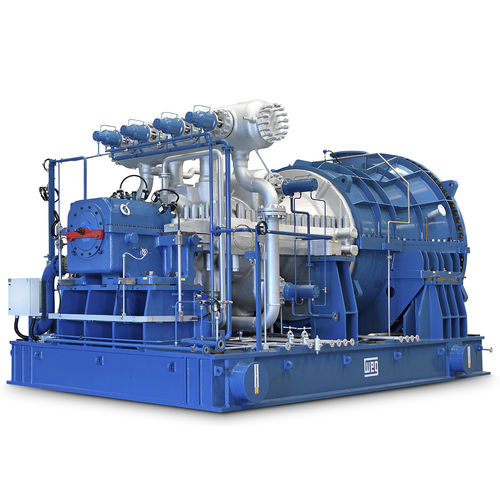

Steam turbine CT-A

reaction

WEG steam turbines, CT-A and CTE-A lines, are designed with axial or sub-axial steam flow, and reaction technology. The sub-axial exhaust design makes it possible to keep the pedestal and the rear bearing of the steam turbine externally isolated from the exhaust casing of the equipment, differently from the conventional steam turbine with axial exhaust. This innovation allows the operator to access the turbine's rear bearing without the need of entering in the turbine's exhaust casing, thus optimizing the lead time for the equipment´s inspection and maintenance. As the CT and CTE lines, they operate with up to 140 bar inlet steam pressure and 540 °C inlet steam temperature Technical Characteristics Reaction tecnology and multi-stage Condensing with or without extraction Inlet pressure up to 2030 psia / 140 bar(a) Inlet temperature up to 1004 °F / 540 °C Comprehensive, integrated and smart solution With a comprehensive range of products and solutions tailored for steam power generation and mechanical drives, WEG designs, manufactures, and installs steam turbines, gearboxes, generators, as well as control and automation panels. All the components are designed using advanced technology and adhere to rigorous international quality standards. The steam turbines are available for various industrial segments and operate with steam derived from diverse sources like biomass, biogas, natural gas, heat recovery, waste-to-energy, and more. Segments: Food and Beverage Pulp and Paper Cement Corn Ethanol Wood Mining Oil, Gas and Petrochemicals Waste-to-energy
