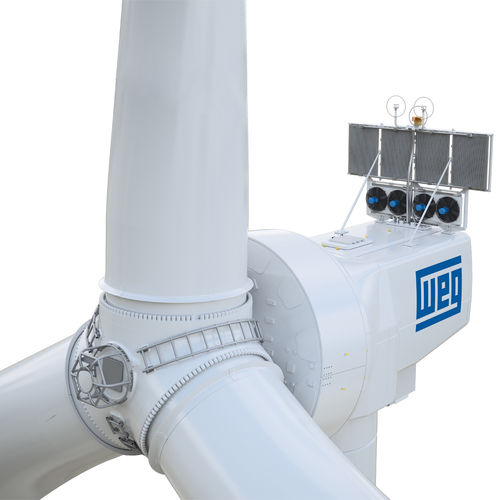

Wind turbine AGW147

The wind turbines have active control, variable blade pitch angle and variable rotor speed with a synchronous generator of permanent magnets and direct coupling to the rotor, without the need of a speed multiplier. All the functions of the wind turbines are monitored and controlled by a control unit based on microprocessors installed on the command and control panel of the turbine. Technical Features Model: AGW147 / 4.2 Rated power: 4,200 kW Wind class (IEC): S (Vref = 9,0 m/s / Iref = 0,14 / Ve50 = 52,5 m/s) Output voltage: 34,5 kV Rotor diameter: 147 m Hub height: 120 m Synchronous generator of permanente magnets Mechanical coupling: direct (without gearbox) Network connection: full power converter
