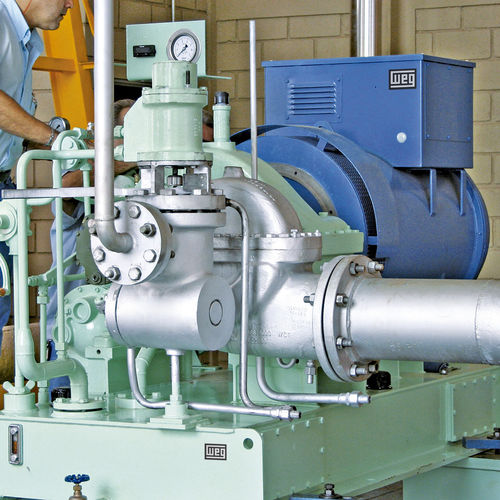

Steam turbine TG

mechanical driveimpulse

WEG steam turbines, TG and TS lines, are backpressure type, single stage, designed with impulse technology. They operate up to 652 psia (45 bara) inlet pressure and 842 °F (450 °C) inlet temperature, generating up to 2 MW. These steam turbine lines were designed for mechanical drive applications, such as compressors, pumps and shredders. They can also be installed to drive small generators, both in island generation or connected to the grid. It is ideal for applications in plants with low steam pressures and even in saturated conditions, from biomass boilers, oil, gas, waste and others. Technical Characteristics Impulse tecnology and single stage Backpressure Inlet pressure up to 652 psia / 45 bar(a) Inlet temperature up to 842 °F / 450 °C Comprehensive, integrated and smart solution With a comprehensive range of products and solutions tailored for steam power generation and mechanical drives, WEG designs, manufactures, and installs steam turbines, gearboxes, generators, as well as control and automation panels. All the components are designed using advanced technology and adhere to rigorous international quality standards. The steam turbines are available for various industrial segments and operate with steam derived from diverse sources like biomass, biogas, natural gas, heat recovery, waste-to-energy, and more. Segments: Food and Beverage Pulp and Paper Cement Corn Ethanol Wood Mining Oil, Gas and Petrochemicals Waste-to-energy Steel Sugar-energy Thermal power plants Others
