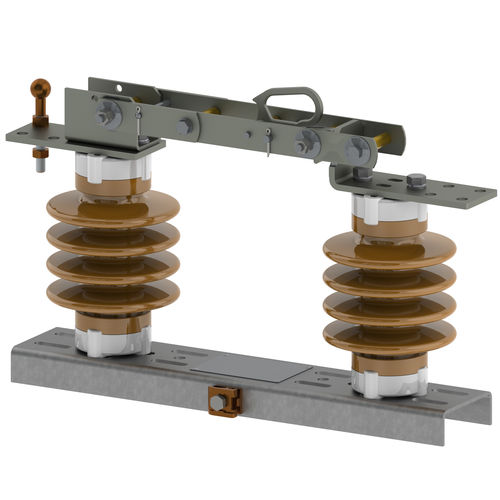

Manual disconnector

single-polecompactvertical

Designed and developed in compliance with NBR IEC 62.271-102 standard, they ensure the insulation of equipment or segments of substation lines when in the open position, allowing confirming visually that the isolated segment is powered down. WEG Advantages Line of 100% national switch-disconnectors; Constant innovations in components, processes and products; Special service focused on the specific needs of each customer; Verticalization of processes, allowing broad quality control of the different production phases, as well as flexibility of lead times; Wide network of accredit Technical Assistants, ensuring fast, local technical service and support to WEG's customers. Opening types Hook stick switch: Used in distribution substations. Switched by stick; Tandem hook stick switch: Used in distribution substations. Switched by stick; Center break disconnector: Used in industrial substations due to their simpler construction; Vertical break disconnector: Used mainly in transmission substations due to their excellent endurance to short circuit; Vertical reach disconnector: Used in substation inputs/outputs, connection of upper x lower busbars and bypasses; Double side break disconnector: Excellent endurance to short circuit, with smooth operation, since they do not require compensation springs; Horizontal semi-pantograph disconnector: Used mainly in transmission substations due to their excellent endurance to short circuit. Because of its compact size, it can be used in areas with little space; Vertical semi-pantograph disconnector: Used in substation inputs/outputs, connection of upper x lower busbars and bypass.
