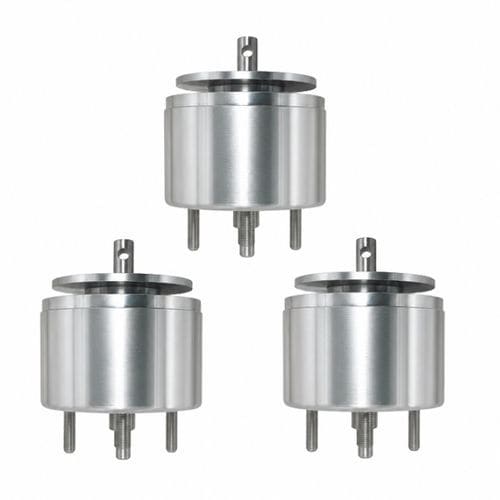

Holding solenoid WL7042

linearsortinglocking

Product overview
A magnetic push-pull solenoid is an electromechanical actuator that converts electrical energy into linear motion. The coil generates a magnetic field that attracts or repels an iron plunger to produce push or pull action. The WL7042 is a tubular push-pull solenoid designed for industrial automation and equipment requiring fast, repeatable linear actuation.

Key features

• Compact tubular construction suitable for confined installations
• Available voltages: 12 V DC, 24 V DC, 48 V DC
• Rated power range: 50–90 W; holding force: 20–30 N (≈1.8 kg)
• Stroke options: 5–20 mm; reset time ~30 ms
• Duty cycle configurable: 1–100% (typical working duty 10%–30%)
• Options: waterproofing, heat-resistant materials, low-noise variants, custom wiring/connectors

Technical specifications

• Brand: Weilong Technology
• Model: WL7042
• Rated voltages: 12 V / 24 V / 48 V DC
• Rated power: 50–90 W
• Working type: Tubular push-pull
• Holding force: 20–30 N (≈1.8 kg)
• Stroke: 5–20 mm
• Reset time: 30 ms
• Service life: ~100,000 cycles
• Insulation class: F; Hi-Pot: AC 600 V 2 s
• Operating temperature: -10 °C to 100 °C
• Material: carbon steel housing with zinc plating
• Lead wire length: 200 mm
• Tolerance: ±0.1 mm
• Warranty: 1 year; MOQ: 1000 pcs; Supply ability: 5000 pcs/week; Delivery: 30 days from order; Port: Shenzhen

Applications

• Industrial automation: switching, positioning, sorting and packaging lines
• Locking and access control systems
• Medical devices: diagnostic and dosing equipment
• Automotive actuators and valve control
• Office equipment, vending machines and robotics

Advantages & limitations

• Advantages: compact size, simple integration, fast response, multiple voltage and stroke options
• Limitations: risk of overheating if used beyond rated duty cycle, reduced force at long strokes, potential noise during operation, requires stable power

Troubleshooting

• Check supply voltage and wiring for faults
• If overheating: reduce duty cycle or improve cooling
• Reduced force: verify voltage, stroke length and magnetic part wear
• Plunger sticking: clean or replace damaged components
• Abnormal noise: inspect mounting, springs and mechanical wear

Ordering & logistics

• Sample orders accepted; payment: TT or LC at sight
• MOQ: 1000 pcs; typical lead time: 30 days
• Production capacity: 5000 pcs/week; shipping port: Shenzhen
