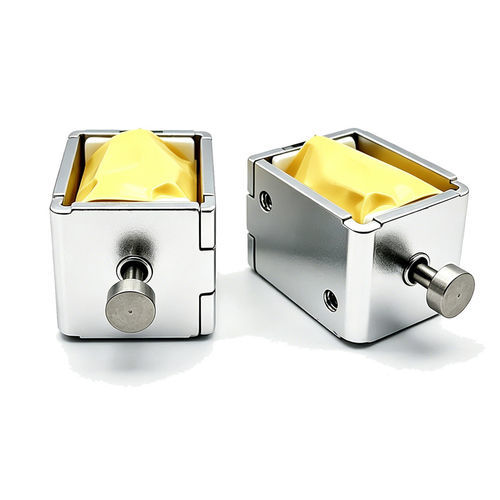

Linear solenoid WL0626

lockingcompactDC

Overview
The WL0626 frame push-pull solenoid is a compact linear electromechanical actuator that converts electrical energy into controlled linear motion. It features a coil, a moving plunger and a metal frame in a bidirectional push-pull arrangement, providing compact, reliable linear actuation for space-constrained industrial applications.

Key Features

• Bidirectional push-pull operation (push and pull actions).
• Energy-efficient coil with low power consumption (typ. 9–12 W).
• Fast response and stable output force with controlled stroke.
• Robust metal frame for structural stability and heat dissipation.
• Available in multiple DC voltages: 6 V, 12 V, 24 V.
• Typical stroke 3–5 mm and low operational noise.
• Adjustable screw installation for easy mounting.

Applications
The WL0626 is suitable for automation, locking and access control (smart locks, cabinet locks, electronic doors), vending machines, ticket gates, packaging machines, industrial automation equipment, medical device actuation (valves, positioning) and compact automotive or office automation systems.

Technical datasheet (selected key values)

• Brand: Weilong Technology
• Model: WL0626
• Rated voltage: DC 6 V / 12 V / 24 V
• Rated power: 9–12 W
• Work model: PUSH-PULL Type
• Holding force: 2–3 N
• Stroke: 3–5 mm
• Reset time: 1 s
• Service life: 300,000 cycles
• Material: Carbon steel housing, zinc-plated
• Lead wire length: 200 mm
• Install style: Adjustable screw
• Insulation class: F (155 °C)
• Hi-pot test: AC 600 V, 50/60 Hz, 2 s
• Working temperature: -10 °C to 100 °C
• Duty cycle: 1–100% (variant dependent)
• Certification: CE, RoHS, ISO9001
• Warranty: 1 year
• MOQ: 500 pcs
• Supply ability: 5000 pcs/week
• Delivery time: 30 days (port: Shenzhen)

Notes on performance & manufacturing quality
Recommended production and quality controls include incoming material inspection, precise coil winding, standardized assembly, 100% functional testing, life-cycle reliability tests and final outgoing checks. Relevant certifications (ISO 9001, CE, RoHS) support traceable quality and reproducible performance.

caractéristiques / spécifications techniques

• Brand: Weilong Technology
• Model Number: WL0626
• Rated Voltage (V): DC 6/12/24
• Rated Power (W): 9–12
• Work Model: PUSH-PULL
• Holding Force (N): 2–3
• Stroke (mm): 3–5
• Reset Time: 1 s
• Service Life: 300,000 cycles
• Certification: CE, RoHS, ISO9001
