Linear solenoid WL0729

maintenance-freecompactDC

Overview

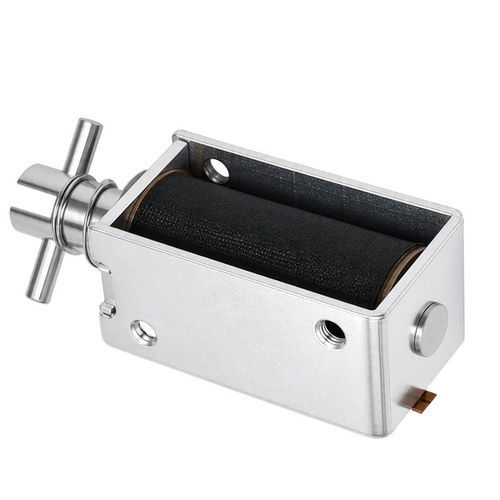

A compact linear push-pull solenoid actuator designed to deliver controlled bidirectional linear motion for industrial automation and electromechanical systems. Activation of the internal coil generates a magnetic field that moves the plunger axially to produce push or pull force for actuation tasks.

Key benefits

• Direct linear motion for fast, repeatable operations
• Compact footprint for integration in constrained assemblies
• Multiple voltage, stroke and mounting options for application matching
• Low maintenance design suitable for high-cycle environments when correctly specified

How it works
The actuator includes a coil surrounding a movable iron plunger. When energized the coil creates an electromagnetic field that attracts or repels the plunger to produce linear travel. Typical sequence:

• Electrical current energizes the coil
• Magnetic field is generated
• Plunger moves axially (push or pull)
• Mechanical output actuates valve, lock or switch
• Return mechanism (usually a spring) or removal of power returns the plunger

Main features

• Push-pull operation with selectable stroke (1–7 mm)
• Wide input voltage range (DC 3–48V) and power variants (10–20 W)
• Carbon steel housing with zinc plating for mechanical protection
• Optional configurations: spring return, high duty cycle variants, noise reduction and adjustable mounting
• Insulation class F and hi-pot tested (AC 600V 2s)

Applications

• Factory automation: clamps, feeders, positioning and fast switching
• Automotive sub-systems: locks, fuel devices, safety interlocks
• Medical devices: pumps, diagnostic equipment, adjustment mechanisms
• Security and access control: electronic locks, automatic doors
• Other: vending machines, robotics, HVAC, agricultural and laboratory equipment

Product datasheet (summary)

• Brand: Weilong Technology
• Model Number: WL0729
• Rated Voltage (V): DC 3–48V
• Rated Power (W): 10–20 W
• Work Model: PUSH-PULL Type
• Holding Force (N): 1–6 N
• Stroke (mm): 1–7 mm
• Reset Time (s): 1 s
• Service Life: 300,000 cycles
• Certification: CE, RoHS, ISO9001
• Material: Carbon steel housing with zinc plated coating
• Lead Wire Length (mm): 200
• Install Style: Adjustable screw
• Tolerance of Dimension: +/- 0.1 mm
• Water-proof: None
• Insulation Class: F (155°C)
• Hi-Pot Test: AC 600V 50/60Hz 2s
• Non-excitation Holding Force: 0 N
• Working Temperature: -10°C to 100°C
• Duty Cycle: 1–100%
• Payment Term: TT or LC at sight
• Sample Order: Yes
• Warranty: 1 Year
• MOQ: 500 pcs
• Supply Ability: 5000 pcs per week
• Delivery Time: 30 days
• Port of Loading: Shenzhen

Troubleshooting / Maintenance

• Actuator does not move: check supply voltage, wiring and coil continuity; replace if coil damaged
• Weak output force: verify correct voltage, actuator selection and check for mechanical load or binding
• Overheating: confirm duty cycle, voltage and allow cooling or select higher duty model
• Slow or irregular movement: inspect for friction, worn springs or insufficient current
• Noise: check mounting tightness, alignment and mechanical impacts
• Service life reduction: protect from overload, contaminants and ensure correct installation
