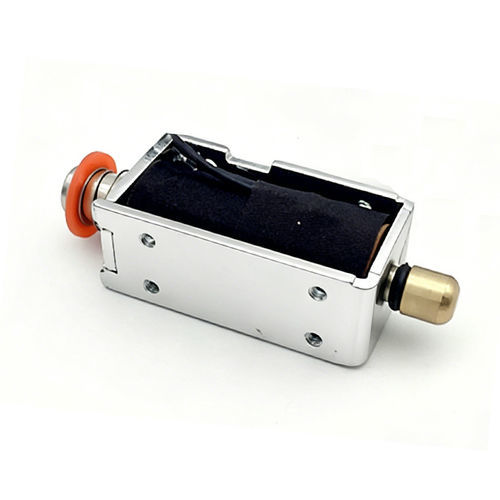

Linear solenoid WL0946

maintenance-freecompact24-volt

Product summary
A push-pull type frame solenoid is an electromechanical actuator that converts electrical energy into mechanical motion via a metal frame, coil, return spring and plunger. When the coil is energized it creates a magnetic field that moves the plunger; some push-pull types allow the plunger to retract inside the coil producing bidirectional (push and pull) motion. These solenoids are compact, durable, quiet in operation and suitable for many electromechanical systems.

Key features

• Bidirectional operation: push and pull movement (push/pull frame type).
• Fast response and stable performance.
• Metal housing for mechanical strength and heat dissipation.
• Available in multiple DC voltages (examples: 6V, 12V, 24V; custom voltages possible).
• Low maintenance, compact size, energy efficient in short impulses.
• Versions for different stroke lengths; stroke can be customized.
• Long service life when used within specified duty cycle.

Applications

• Automation equipment: sorting, switching, positioning and packaging machinery.
• Access control and locking systems: smart locks, cabinet locks, electronic door locks, smart-home lock modules.
• Vending machines, ticketing systems and gaming/ATM/locker devices.
• Medical equipment: valve and fluid control, positioning.
• Automotive: locking mechanisms and related actuations.
• Robotics and precision motion uses where quick linear actuation is required.

Overview & advantages
Push-pull frame solenoids offer a simple, robust and economical actuator solution. They require simple control (apply voltage to actuate, remove voltage to release), can deliver reasonable holding/clamping force with short energy pulses, and integrate easily into microcontroller-based systems. Typical trade-offs include limited absolute force compared to larger actuators and sensitivity to duty-cycle/thermal constraints.

Technical datasheet
Brand: Weilong Technology
Model Number: WL0946
Rated Voltage (V): DC12V or 24V (also available in other DC versions)
Rated Power (W): 11.5 W
Work Mode: Push and Pull
Holding Force (N): 500 GF at 3 mm, 400 GF at 5 MM
Stroke (mm): 2-5 MM (customized)
Working Duty: Continuous
Service Life: 200 Thousand Times
Certification: CE, RoHS, ISO9001
Material: Superior Magnet Iron
Lead Wire Length (mm): 200 MM
Install Style: Screw
Tolerance of Dimension: +/- 0.1 MM
Water-proof: None
Insulation Class: B
Hi-Pot Test: AC 600V 50/60Hz 2s
Non-excitation Holding Force: 0
Working Temperature: -10°C - 100°C
Duty Cycle: 1-100%
Payment Term: TT, or LC At Sight
Sample Order: Yes
Warranty: 1 Year
MOQ: 1000 pcs
Supply Ability: 5000 pcs per Week
Delivery Time: 30 Days
Port of Loading: Shenzhen

Technical specifications

• Model: WL0946
• Brand: Weilong Technology
• Rated voltages commonly offered: DC 6V / 12V / 24V (customizable)
• Rated power: 11.5 W
• Operation mode: push & pull (bidirectional)
• Holding force examples: 500 gf @ 3 mm; 400 gf @ 5 mm
• Stroke: adjustable, typical 2–5 mm
• Working duty: continuous (observe duty cycle limits for thermal management)
• Service life: approx. 200,000 cycles
• Insulation class: B; hi-pot test AC 600V 50/60Hz 2s
• Material: high-quality magnet iron
• Lead wire length: 200 mm
• Mounting: screw installation
• Dimensional tolerance: +/- 0.1 mm
• Operating temperature range: -10 °C to 100 °C
• Non-excited holding force: 0
• Typical MOQ and supply: MOQ 1000 pcs; up to 5,000 pcs/week production capacity
• Typical delivery lead time: 30 days
• Certifications: CE, RoHS, ISO9001
