LCD monitor W07L100-POT1-C
projected capacitive touchscreenmultitouch screenindustrial

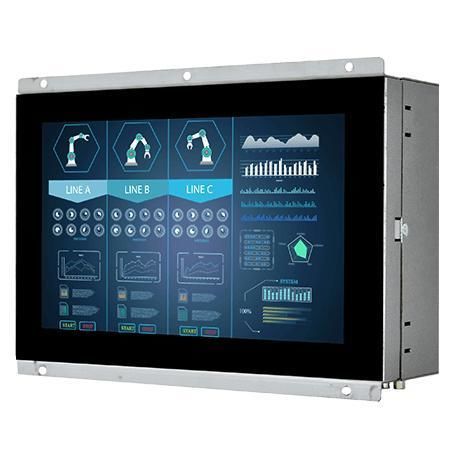

LCD monitor - W07L100-POT1-C - Winmate, Inc. - projected capacitive touchscreen / multitouch screen / industrial
LCD monitor - W07L100-POT1-C - Winmate, Inc. - projected capacitive touchscreen / multitouch screen / industrial
Add to favorites
Compare this product
Go to the Winmate, Inc. website for more information

Characteristics

Technology
LCD, projected capacitive touchscreen, multitouch screen
Applications
industrial, for displays, for HMI interface
Display size
7"
Resolution
1024 x 600
Mounting
VESA mounting, panel-mount, open-frame
Other characteristics
USB Type-C, DisplayPort, fanless, embedded, customizable
Operating temperature

Min.: 0 °C
(32 °F)

Max.: 50 °C
(122 °F)

Description

Overview
The Winmate W07L100-POT1-C is a 7.0-inch USB Type-C open frame display for industrial and commercial integrations. It combines a projected capacitive multi-touch (P-CAP) panel with a single USB Type-C connector that carries video, touch and power, and an open-frame metal enclosure suited for embedded mounting and VESA installations.

Key features
  • 7.0", 1024 x 600 open frame display
  • USB Type-C connector (DisplayPort Alt Mode / PD / USB HID)
  • Projected capacitive (P-CAP) multi-touch
  • VESA mount and panel-mount compatible
  • Fanless metal enclosure

Certifications
  • CE
  • FCC

Functional highlights
  • Multi-touch responsiveness: P-CAP supports multi-finger gestures such as pinch, rotate and drag-and-drop via standard USB HID.
  • Single-cable integration: USB Type-C Alt Mode provides video, touch signal and power over one cable for simplified wiring.
  • Industrial durability: Touchscreen and enclosure validated through manufacturing durability tests for reliable deployment.
  • Modular display assembly: Industrial-grade module assembled under controlled conditions for consistent image performance and downstream processing.
  • Customization options: Configurable panel brightness, glass surface treatment, ports, mounting and logo options to meet application requirements.

Technical specifications
  • Model: W07L100-POT1-C
  • Display size: 7.0 inches
  • Resolution: 1024 x 600
  • Touch / Glass: Projected Capacitive Multi Touch (default); Protection glass optional
  • Panel brightness: 320 nits
  • Contrast ratio: 500:1
  • Viewing angles: 75/75/75/70 (deg)
  • Display color: 16.7M colors
  • Operating humidity: 10% to 90% (non-condensing)
  • Operating temperature: 0 ~ 50 °C
  • Storage temperature: -10 ~ 60 °C
  • USB port: 1 × USB Type-C connector
  • Audio: 2 × speaker (optional)
  • Dimensions: 190 × 139.6 × 34 mm
  • Mounting: VESA mount / panel mount
  • Enclosure: Metal, fanless design
  • Power rating: USB Type-C Alt Mode (5V/3A)
  • Controls: 5 keys: -, +, Power, Esc, Enter
  • Included accessory: User manual
  • Optional accessories: Standard USB-C cable; lockable USB-C variants; waterproof USB-C cable; dual-side lockable USB-C cable options
  • Certifications: CE, FCC
