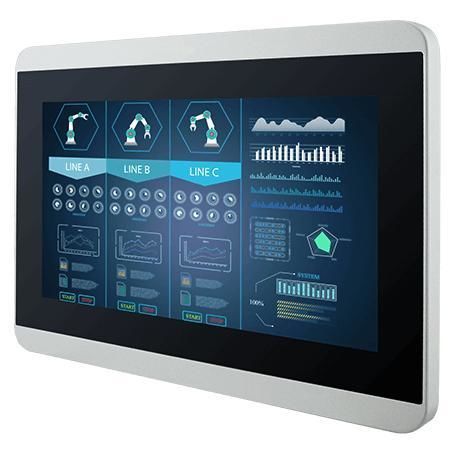

Projected capacitive touchscreen monitor W07L100-GCO1HB-C

multitouch screentouchwith touchscreen

Product Type
7.0-inch USB-C chassis high-brightness display, model W07L100-GCO1HB-C. Integrates video input, power delivery and touch over a single USB Type-C connection.

Key Features

• 7.0 inches, 1024 x 600 resolution
• USB Type-C connector with Alt Mode (video + power + touch)
• Projected Capacitive multi-touch (P-CAP)
• Panel brightness 1000 nits, contrast ratio 800:1
• Front protection IP65
• Chassis enclosure, VESA mount (default)

Product Details

• Single reversible connector: USB Type-C (5V/3A) carries video, power and touch data for simplified single-cable installations.
• Multi-touch interaction: P-CAP touch supports gestures such as pinch-to-zoom, rotate and drag-and-drop for operator efficiency.
• Durable design: Aluminum enclosure and fanless mechanical design; manufacturing durability testing for industrial use.
• Image performance: Industrial-grade display module assembly for consistent color and contrast.
• Customization options: Panel brightness, cover glass treatment, display ports and mounting options (VESA default, panel mount optional); regional power plug and cable options.

Certifications

• CE
• FCC

Accessories (included / optional)

• Included: User Manual
• Optional: Lockable USB-C to Standard USB-C Cable; Waterproof USB-C to Standard USB-C Cable; Dual-side Lockable USB Type-C Cable; Std. USB Type-C Cable

Additional Notes
Front protection rating IP65. Fanless design. VESA mounting by default; panel mount available as an option.

Specifications

• Model: W07L100-GCO1HB-C
• Brand: Winmate
• Touch / Glass: Projected Capacitive Multi Touch Screen (default); Protection Glass (optional)
• Size: 7.0 inches
• Resolution: 1024 x 600
• Panel Brightness: 1000 nits
• Contrast Ratio: 800:1
• View Angles: 85 / 85 / 85 / 85
• Display Color: 16.7M Colors
• Active Area: 152.2144 x 85.92 mm
• Operating Humidity: 10% to 90% RH, non-condensing
• Operating Temperature: 0°C to 50°C
• Storage Temperature: -10°C to 60°C
• Certification: CE, FCC
• USB Port: 1 x USB Type-C
• Audio: 1 x Speaker (Optional)
• Dimensions: 189.4 x 145.4 x 39.8 mm
• Mounting: VESA mount (default); Panel mount (optional)
• Enclosure: Aluminum
• Cooling System: Fanless Design
• Power Rating: USB Type-C Alt Mode (5V/3A)
• Controls / Buttons: 5 Keys: -, +, Power, Esc, Enter
