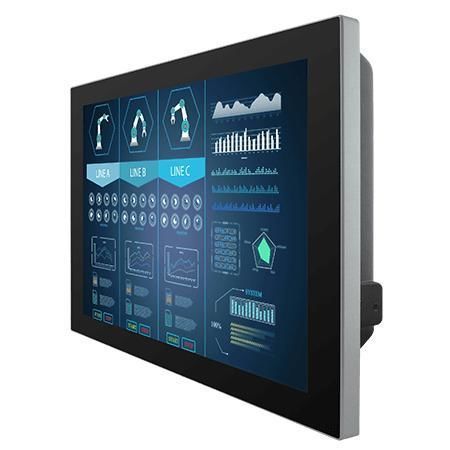

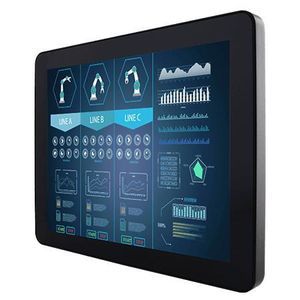

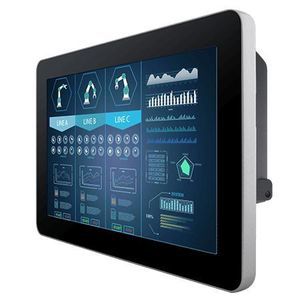

TFT-LCD monitor R15L600-GCC3-C

projected capacitive touchscreenPCAP capacitive touch screenmultitouch screen

Overview
The R15L600-GCC3-C is a 15.0 inches USB Type-C chassis display engineered for industrial and commercial applications. It provides single-cable USB Type-C connectivity for video, power and touch, a front IP65-rated panel and Projected Capacitive (P-CAP) multi-touch as the default touch option. The product supports extensive customization including glass surface treatment, display ports, panel brightness and regional power options.

Key Features

• 15.0 inches, 1024 x 768 resolution
• USB Type-C connector (single-cable for video, power and touch)
• Chassis form factor with VESA mounting
• Projected Capacitive (P-CAP) multi-touch
• Front IP65-rated panel
• Aluminum enclosure, fanless design

Product Highlights

• Thin reversible connector: USB Type-C Alt Mode integrates video input, power and touch into one reversible connector for simplified cabling.
• P-CAP multi-touch: High-sensitivity capacitive touch supporting gestures such as pinch-to-zoom, rotate and drag-and-drop for intuitive HMI operation.
• Industrial durability: Designed and tested for industrial environments to ensure reliable operation under specified temperature and humidity ranges.
• Image quality: Industrial-grade TFT-LCD assembly with 300 nits brightness, 2000:1 contrast and 16.2M colors.
• Customisation: Options for protection glass, anti-glare coating, port configuration, panel brightness and customer logo.

Certifications

• CE
• FCC

Accessories (examples of optional accessories)

• Waterproof USB-C to Lockable USB-C Cable (Model: WLUSBC)
• Waterproof USB-C to Standard USB-C Cable (Model: WUSBC)
• Lockable USB-C to Standard USB-C Cable (Model: LUSBC)
• Std. USB Type-C Cable (Model: SUSBC)
• Dual-side Lockable USB Type-C Cable (Model: DLUSBC)

Technical specifications

• Size: 15.0 inches
• Resolution: 1024 x 768
• Touch / Glass: Projected Capacitive Multi Touch (default); Protection Glass (optional); Anti-glare Coating (optional)
• Panel Brightness: 300 nits
• Contrast Ratio: 2000:1
• View Angles: 88°/88°/88°/88°
• Display Color: 16.2M Colors
• Operating Humidity: 10% to 90% (non-condensing)
• Operating Temperature: 0 ~ 50°C
• Storage Temperature: -10 ~ 60°C
• Certifications: CE, FCC
• IO Ports: 1 x USB Type-C connector; Audio: 1 x Speaker (optional)
• Mechanical Dimensions: 363.4 x 277.86 x 45.20 mm
• Mounting: VESA Mount / Panel Mount
• Enclosure: Aluminum
• Cooling System: Fanless Design
• Power Rating: USB Type-C Alt mode (5V/3A)
• Control: 5 Keys ( -, +, Power, Esc, Enter )
• Accessories Included / Supported: User Manual; optional lockable, waterproof and dual-side lockable USB Type-C cables
