IPS LCD monitor W10L100-POH2-C

projected capacitive touchscreenmultitouch screendigital

Overview

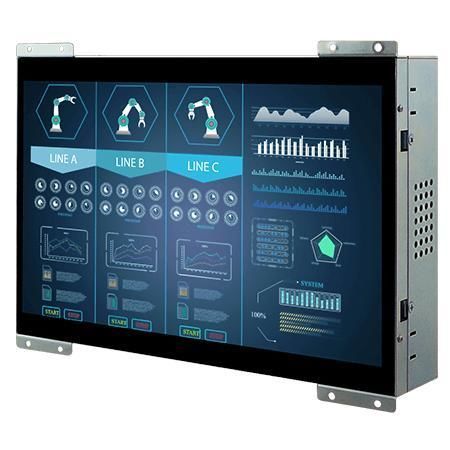

The W10L100-POH2-C is a 10.1-inch USB Type-C open-frame display designed for embedded systems, industrial applications, kiosks and digital signage. It provides a single-cable USB Type-C solution that consolidates power, video and touch signals for simplified integration and reduced cable clutter.

Key Features

• 10.1-inch IPS panel, 1280 x 800 resolution
• USB Type-C connector (single-cable for power, video and touch)
• Open frame design suitable for enclosure integration and kiosks
• Projected Capacitive (P-CAP) multi-touch with multi-finger gestures
• VESA mount support; fanless metal enclosure

Display and Touch
Projected capacitive multi-touch (P-CAP) delivers accurate multi-finger gestures including pinch-to-zoom, rotate, drag-and-drop and multi-touch input. The touch surface uses a durable glass panel and can be supplied with an anti-glare coating for improved usability in various lighting conditions.

Connectivity and Power
The display supports USB Type-C Alt Mode (5V/3A), delivering power, video signal and touch data over a single cable to simplify integration with laptops, single-board computers and embedded systems. USB Type-C enhances compatibility across devices and operating systems and reduces installation complexity.

Durability and Image Quality
Manufactured and tested to industrial standards, the module is suitable for continuous 24/7 operation with resistance to shock and vibration. The IPS panel provides wide viewing angles and stable, vivid image quality for monitoring and signage applications.

Customization and Integration
Open-frame construction and compact mechanical dimensions enable easy customization and integration into housings and kiosks. Available options include panel brightness, glass surface treatment, display ports, mounting style and regional power connector choices to meet project requirements.

Certifications

• CE
• FCC

Technical specifications

• Display Size: 10.1 inches
• Resolution: 1280 x 800
• Touch / Glass: Projected Capacitive Multi-Touch (default); Anti-glare coating optional
• Panel Brightness: 350 nits
• Contrast Ratio: 800:1
• View Angles: 85 / 85 / 85 / 85
• Display Color: 16.7M colors
• Operating Humidity: 10% to 90% (non-condensing)
• Operating Temperature: 0 to 50 °C
• Storage Temperature: -10 to 60 °C
• Certification: CE, FCC
• USB Port: 1 x USB Type-C connector
• Audio: 2 x Speaker (optional)
• Dimensions: 262.3 x 188 x 37 mm
• Mounting: VESA Mount / Panel Mount
• Enclosure: Metal; Fanless design
• Power Rating: USB Type-C Alt Mode (5V/3A)
• Buttons / Control: 5 keys ( -, +, Power, Esc, Enter )
• Accessories: User Manual; optional USB-C cables (standard, lockable, waterproof, dual-side lockable)
