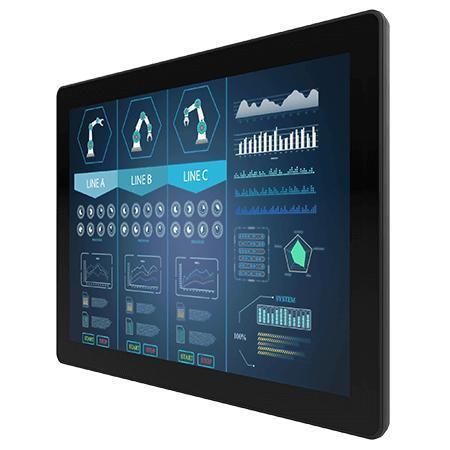

TFT-LCD monitor R15L600-PTC3-C

projected capacitive touchscreenmultitouch screenindustrial

Overview
The R15L600-PTC3-C is a 15" USB Type-C chassis display for industrial and commercial integration. It provides single-cable connectivity for video, touch and power (USB Type-C Alt Mode and Power Delivery), a chassis mount form factor with VESA mounting, and options for projected capacitive multi-touch, front IP65 protection and high-brightness panels.

Key Features

• 15" TFT-LCD, XGA (1024 x 768) resolution
• USB Type-C connector (video, touch, power via Alt Mode / PD)
• Chassis mount design with VESA mounting
• Projected Capacitive (P-CAP) multi-touch (default); optional resistive touch variants
• Front panel IP65 protection available (optional)
• Fanless design; rugged enclosure suitable for continuous industrial use

Highlights & Benefits

• Single-cable simplicity: video, touch input and power over one USB Type-C cable (Alt Mode and PD supported) to simplify installation and maintenance.
• P-CAP multi-touch: supports multi-finger gestures and responsive input for finger or gloved operation (configuration dependent).
• Industrial reliability: chassis construction and optional front sealing (IP65) for dust and splash resistance in demanding environments.
• Display performance: XGA resolution with options for higher brightness and optical bonding to improve readability in bright or semi-outdoor conditions.
• Customization: mechanical, front glass, brightness, I/O and accessory options to match system integration requirements.

Certifications

• CE
• FCC

Included / Optional I/O & Accessories

• Standard I/O: 1 x USB Type-C (video, touch, power)
• Optional audio: 2 x speakers
• Optional cables/accessories: waterproof and lockable USB-C cables, dual-side lockable USB-C cable, standard USB-C cable, and other installation variants

Applications

• Factory automation HMI / SCADA operator panels
• Vehicle-mounted displays and fleet systems
• Retail kiosks and self-service terminals
• Embedded systems and diagnostic panels
• Logistics and warehouse terminals, mobile carts
• Semi-outdoor use with high-brightness and optical bonding options

Notes
Multiple touch and I/O configurations are available depending on model and options. Front IP65, optical bonding and high-brightness panels are optional features for enhanced sealing and sunlight readability.

Technical specifications

• Model: R15L600-PTC3-C
• Display size: 15.0 inches
• Resolution: 1024 x 768 (XGA)
• Panel brightness: 250 nits (standard); higher brightness options available
• Contrast ratio: 800:1
• View angles: 80/80/70/80 (L/R/T/B)
• Display color: 16.2M colors
• Active area: 304.128 x 228.096 mm
• Touch / Glass: Projected Capacitive Multi-Touch (default); protection glass and anti-glare coating optional
• IO ports: 1 x USB Type-C
• Audio: 2 x speaker (optional)
• Power rating: USB Type-C Alt Mode (5V/3A)
• Mechanical dimension: 352.5 x 276.7 x 45.4 mm
• Mounting: VESA mount; chassis mount design
• Enclosure: Plastic (chassis); rugged metal options available
• Cooling: Fanless design
• Operating humidity: 10% to 90% RH, non-condensing
• Operating temperature: 0°C to 50°C
• Storage temperature: -10°C to 60°C
• Controls: 5 keys ( -, +, Power, Esc, Enter )
• Certifications: CE, FCC
• Optional accessories: lockable and waterproof USB-C cables (WLUSBC, WUSBC, LUSBC, SUSBC, DLUSBC)
