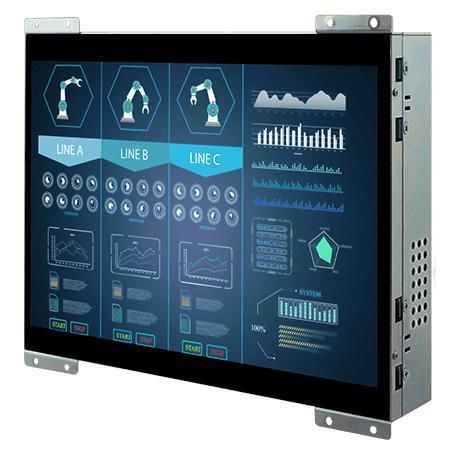

LCD monitor R10L100-POT2-C

projected capacitive touchscreenmultitouch screenindustrial

Overview
R10L100-POT2-C is a 10.4" (1024 x 768) USB Type-C open-frame touch display featuring projected capacitive multi-touch (P-CAP) and single-cable USB Type-C Alt Mode for video, power and touch. The metal enclosure, VESA and panel mounting options and fanless design support industrial and embedded system integration.

Key Features

• 10.4" diagonal, 1024 x 768 resolution
• USB Type-C connector (single-cable solution: video, power, touch)
• Open-frame design with VESA and panel mounting
• Projected Capacitive (P-CAP) multi-touch
• 350 nits panel brightness, 1000:1 contrast ratio

Certifications

• CE
• FCC

Product Details

• Display: 10.4 inches, 1024 x 768, 350 nits, 1000:1 contrast, 88/88/88/88 viewing angles, 16.2M colors.
• Touch / Glass: Projected Capacitive Multi-Touch (default). Protection glass available as an option.
• Environment: Operating humidity 10%–90% (non-condensing). Operating temperature 0 ~ 50°C. Storage temperature -10 ~ 60°C.
• I/O Ports: 1 x USB Type-C connector. Audio: 2 x speaker (optional).
• Mechanical: Dimensions 260 x 215.1 x 50 mm. Mounting: VESA mount / panel mount. Enclosure: metal. Cooling: fanless design.
• Power: USB Type-C Alt Mode (5V/3A).
• Control: 5 keys ( -, +, Power, Esc, Enter ).
• Accessories: User manual included. Optional accessories: standard USB-C cable; lockable or waterproof USB-C cable; dual-side lockable USB-C options.

Technical specifications

• Model: R10L100-POT2-C
• Display Size: 10.4 inches
• Resolution: 1024 x 768
• Touch / Glass: Projected Capacitive Multi Touch Screen (default); Protection Glass optional
• Panel Brightness: 350 nits
• Contrast Ratio: 1000:1
• View Angles: 88, 88, 88, 88
• Display Color: 16.2M Colors
• Operating Humidity: 10% to 90% (non-condensing)
• Operating Temperature: 0 ~ 50°C
• Storage Temperature: -10 ~ 60°C
• Certification: CE, FCC
• USB Port: 1 x USB Type-C Connector
• Audio: 2 x Speaker (Optional)
• Dimension: 260 x 215.1 x 50 mm
• Mounting: VESA Mount / Panel Mount
• Enclosure: Metal
• Cooling System: Fanless Design
• Power Rating: USB Type-C Alt mode (5V/3A)
• Control Buttons: 5 Keys ( - , + , Power , Esc , Enter )
• Optional Accessories: Standard USB-C Cable; Lockable USB-C; Waterproof USB-C; Dual-side Lockable USB-C
