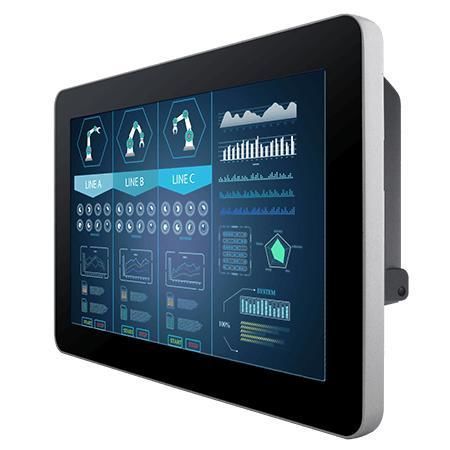

LCD monitor W10L100-GCH2-C

projected capacitive touchscreenmultitouch screenindustrial

Overview
The W10L100-GCH2-C is a 10.1" USB Type-C chassis display for industrial and commercial applications, delivering single-cable video, touch and power via USB Type-C Alt Mode and a front panel with IP65 protection.

Key Features

• 10.1" diagonal, 1280 x 800 resolution
• USB Type-C connector (single-cable video, touch, and power via Alt Mode)
• Chassis display form factor with VESA / panel mount support
• Projected Capacitive (P-CAP) multi-touch
• Front IP65 protection
• Fanless design

Product Highlights
Thin reversible connector: USB Type-C combines video input, power and touch data in a single reversible cable to simplify installation and cabling.

Projected capacitive multi-touch: High-sensitivity multi-touch supports gestures such as pinch-to-zoom, rotate and multi-finger drag-and-drop for intuitive operator interaction.

Designed for industrial use: Built and tested for durability in industrial environments with options for higher brightness and protective glass.

Accessories (optional)

• Waterproof USB-C to Lockable USB-C Cable — Model: WLUSBC — Part Number: 9480240240K8
• Waterproof USB-C to Standard USB-C Cable — Model: WUSBC — Part Number: 9480240240K2
• Lockable USB-C to Standard USB-C Cable — Model: LUSBC — Part Number: 9480240240K5
• Std. USB Type-C Cable — Model: SUSBC — Part Number: 9480240240K7
• Dual-side Lockable USB Type-C Cable — Model: DLUSBC — Part Number: 9480240240K6
• User manual (supplied)

Certifications

• CE
• FCC

Technical Specifications

• Model: W10L100-GCH2-C
• Display size: 10.1 inches
• Resolution: 1280 x 800
• Touch / Glass: Projected Capacitive Multi Touch (default); Protection Glass (optional); Anti-glare coating (optional)
• Panel brightness: 350 nits (default); 1000 nits (optional)
• Contrast ratio: 800:1
• View angles: 85/85/85/85
• Display color: 16.7M colors
• Active area: 216.96 x 135.6 mm
• Operating humidity: 10% to 90% (non-condensing)
• Operating temperature: 0 ~ 50 °C
• Storage temperature: -10 ~ 60 °C
• USB port: 1 x USB Type-C connector (Alt Mode for video, touch, power)
• Audio: 1 x Speaker (optional)
• Power rating: USB Type-C Alt mode (5V / 3A)
• Control buttons: 5 keys (-, +, Power, Esc, Enter)
• Dimension: 263.3 x 172 x 40.2 mm
• Mounting: VESA mount / Panel mount
• Enclosure: Plastic bezel & Aluminum back cover
• Cooling: Fanless design
