PCAP touchscreen monitor R15L100-POC3-C
multitouch screenindustrial15"

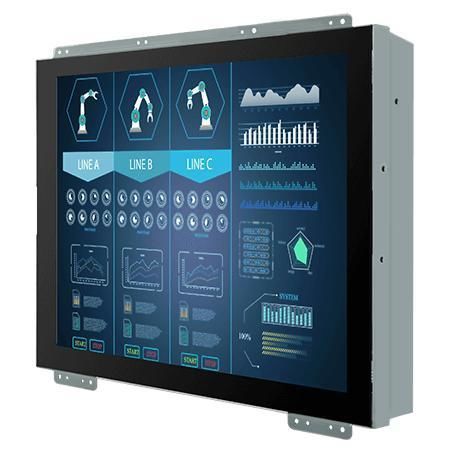

PCAP touchscreen monitor - R15L100-POC3-C - Winmate, Inc. - multitouch screen / industrial / 15"
PCAP touchscreen monitor - R15L100-POC3-C - Winmate, Inc. - multitouch screen / industrial / 15"
Add to favorites
Compare this product
Go to the Winmate, Inc. website for more information

Characteristics

Technology
PCAP touchscreen, multitouch screen
Applications
industrial
Display size
15"
Resolution
1024 x 768
Mounting
VESA mounting, open-frame
Other characteristics
USB Type-C, fanless, anti-glare
Operating temperature

Min.: 0 °C
(32 °F)

Max.: 50 °C
(122 °F)

Description

Overview
  • Winmate R15L100-POC3-C: 15-inch USB Type-C open frame industrial display with projected capacitive multi-touch (P-CAP).
  • USB Type-C Connector: single-cable integration for video, touch and power using USB Type-C Alt Mode.
  • Highly durable touchscreen designed and tested for industrial use.
  • Outstanding image quality: industrial-grade display modules assembled in cleanroom conditions.
  • Wide customization options including size, customer logo, LCD brightness, glass cover treatments, display ports and regional power plug styles.


Key Features
  • 15" display size, resolution 1024 x 768
  • Projected Capacitive Multi-Touch (PCAP)
  • USB Type-C single-cable solution
  • Open frame design with VESA mount support
  • Fanless metal enclosure


Certifications
  • CE
  • FCC


Accessories (optional)
  • User Manual
  • Standard USB-C Cable (optional)
  • Lockable USB-C to Standard USB-C Cable (optional)
  • Waterproof USB-C to Standard USB-C Cable (optional)
  • Waterproof USB-C to Lockable USB-C Cable (optional)
  • Dual-side Lockable USB Type-C Cable (optional)


Specifications
  • Size: 15.0 inches
  • Touch / Glass: Projected Capacitive Multi Touch Screen (Default); Protection Glass (Optional); Anti-glare Coating (Optional)
  • Resolution: 1024 x 768
  • Panel Brightness: 300 nits
  • Contrast Ratio: 2000:1
  • View Angles: 88, 88, 88, 88
  • Display Color: 16.2M Colors
  • Operating Humidity: 10% to 90% (non-condensing)
  • Operating Temperature: 0 ~ 50°C
  • Storage Temperature: -10 ~ 60°C
  • Certification: CE, FCC
  • USB Port: 1 x USB Type-C Connector
  • Audio: 2 x Speaker (Optional)
  • Dimension: 351.6 x 274.1 x 47 mm
  • Cut out: 338.4 x 295 mm
  • Mounting: VESA Mount / Panel Mount
  • Enclosure: Metal
  • Cooling System: Fanless Design
  • Power Rating: USB Type-C Alt mode (5V/3A)
  • Control Buttons: 5 Keys: -, +, Power, Esc, Enter
